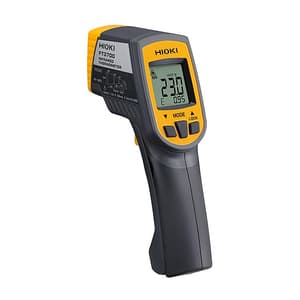

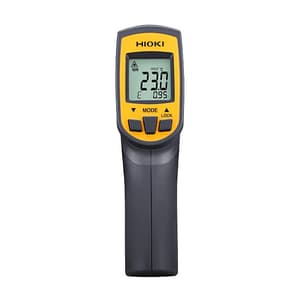

The FT3700 and FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.

Key Features:

• Pistol design with easy-to-see display
• A full menu of basic measuring functions
• Ideal for HVAC Applications
• Easily test in difficult locations, moving objects or where there is danger of electric shock
• Note: For industrial use only. Cannot measure body temperature. The laser marker beams are very dangerous if it gets into your eyes.



Accuracy

-35.0°C to -0.1°C (-31.0°F to 31.9°F) : ±10 %rdg. ±2°C 0.0°C to 100.0°C (-32.0°F to 212.0°F) : ±2°C 100.1°C to 500.0°C (212.1°F to 932.0°F) : ±2% rdg. Note: -60.0°C to -35.1°C (-76.0°F to -31.1°F), and over 500.1°C (932.0°F), Accuracy not specified



How to Use the Hioki Infrared Thermometer FT3700/FT3701

Basic introduction to using a Hioki infrared thermometer. Introduces how to use Hioki's FT3700/FT3701 Infrared Thermometer, from activating the laser marker and setting the emissivity to making measurements.

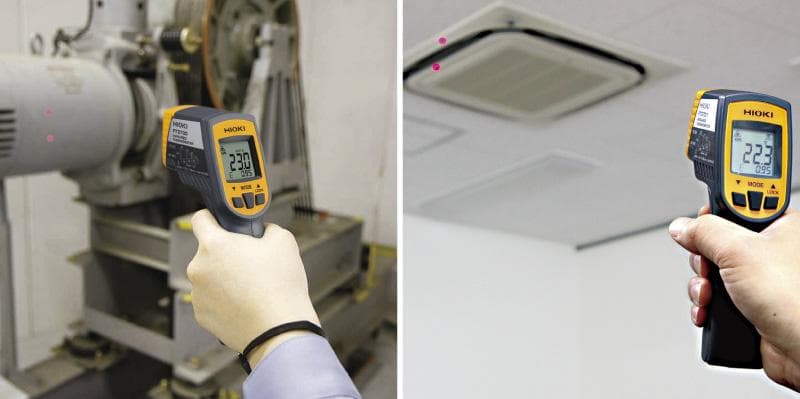

The instrument makes it easy to measure the temperature of targets such as an air-conditioner outlet some distance away, a circuit-breaker in a distribution panel that poses the risk if touched, and an operating motor.

What's Included In This Package:

• 1x Instruction manual
• 2x LR03 alkaline battery

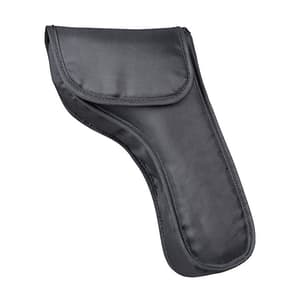

• 1x Carrying case

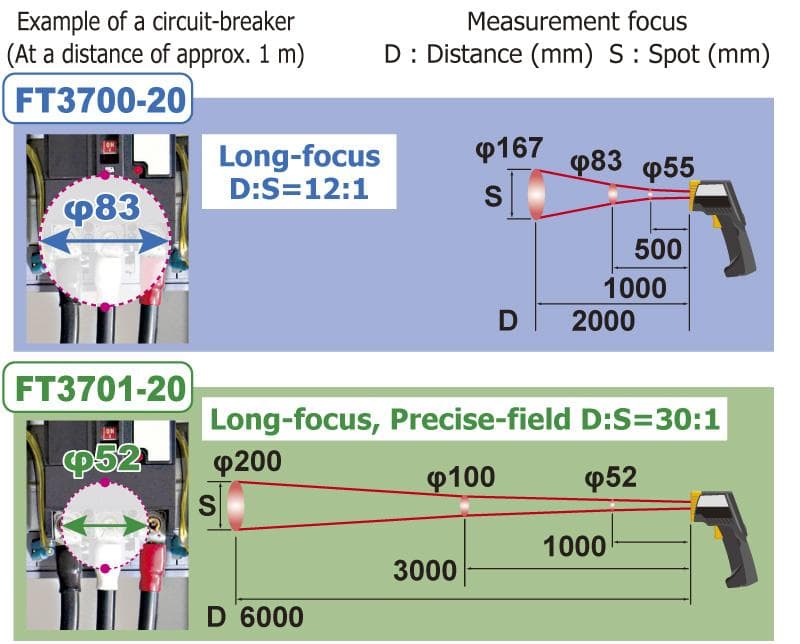

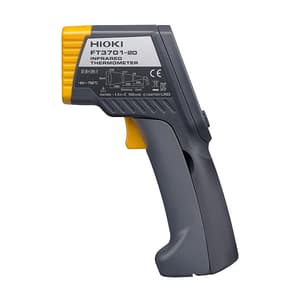

Choose from the two models according to your measurement location FT3700-20: Long-focus, For measuring temperature over a wide area FT3701-20: Long-focus, Precise-field, For measuring temperature at a single point Identify the measurement location reliably Two-point laser marker

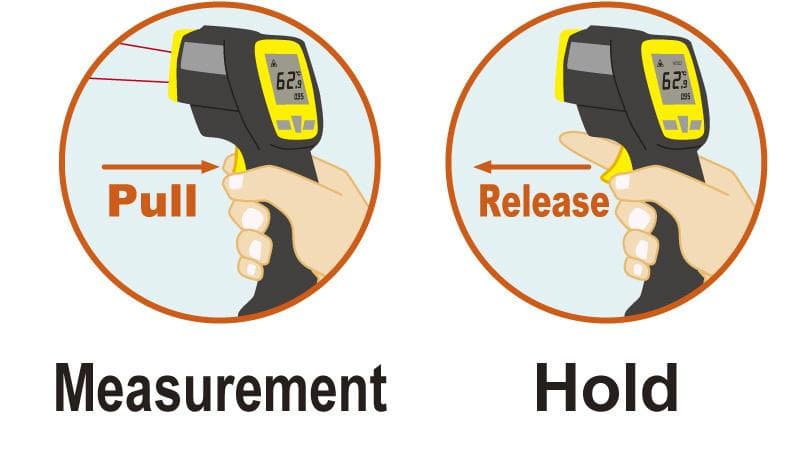

Non-contact infrared thermometer featuring simple, one-touch measurement Easy operation: just pull the measurement trigger Release it to hold the measured value

Since the instrument measures radiation temperature, it’s easy to make readings in hazardous or unreachable locations Locations that cannot be touched due to moving parts Locations that pose the risk of electric shock Unreachable locations. It’s optimal for measuring temperature anywhere.
