Built in DDS Function Signal Generator 14 standard signals (@2.5VPP). including sine wave, square wave, triangle wave, sawtooth, anti sawtooth, ladder wave, half wave rectification, full wave rectification, exponential wave, logarithmic wave, pair index, open square wave, multi audio, sink pulse wave, as well as a cut-off output function that can customize the output signal freely.

In which the sine wave frequency can reach 10MHz at most and other standard signals can reach 2MHz. cutt-off frequency can reach 2MHz. The wave output device can reach 1MHz at most an the frequency resolution of all signals can reach 1Hz (Step). It is not the half frequency step mode of half frequency division produced by other handheld devices.

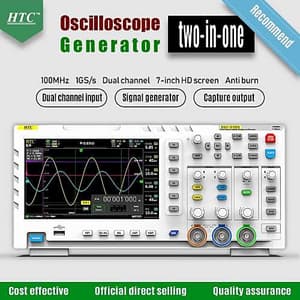

• 2 in 1 Dual Channel Input.
• Signal Generator 100MHz x 2 Analog Bandwidth.
• 1GSa/s Real Time Sampling Rate.
• The LCD screen is 7 inches.
• High Intelligent Decoding algorithm.

Measurement:

Cursor	Manual mode	Voltage Difference (V) between cursors; Time Difference (T) between cursors; Reciprocal of T(1/)
Stored waveform	built-in 1GB storage space, can store up to 1000 screen capture pictures + 1000 groups of waveform data 240Kbit
LCD	7 INCH 800+400
Lissajou’s figure	Phase location difference	±3 degrees



Power:

Power Voltage	100~240VACRMS, 45~60Hz, CAT II
Power Consumption	To be less than 30VA
Fuse	F1, 6AL, 250V; Fuses are on power board in the unit
Dimension	Width	310mm
	Height	145mm
	Depth	70mm
Accessories	100M Probe *2, USB Adapter, User Manual
