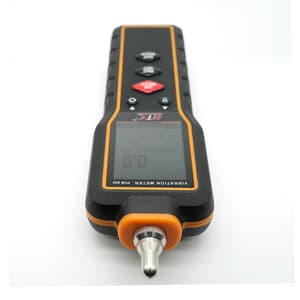

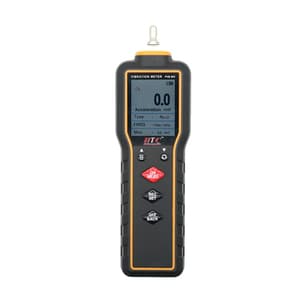

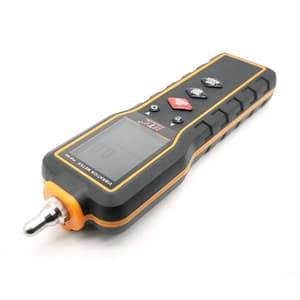

HTC 10Hz - 10KHz Frequency Range Pen Vibration Meter, PVB-805
Roll over image to zoom zoom_in
- Weight: 121 Grams
- Product Type: Vibration Meter
- Sensor: Piezoelectric Accelerated Sensor
- Power: 1.5V AAA battery
- Data Refresh Time: 500ms
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹10643.6 (Incl. of all taxes)
₹9020+ ₹1623.6 GST (18%)
MRP ₹11275
SAVE 20%
5 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Frequency Range-10Hz~10KHz.
- Short and Long Probes are for displacement, velocity and acceleration.
- Auto Power Off (APO).
- User Can Check historical data view on screen.
Package Contents:
- PVB-805 Vibration Meter,
- 2x 1.5V AAA batteries.
Functions:
| Acceleration Measurement Range | 0.1~199.9m/s2 (peak value) |
| Velocity Measurement Range | 0.1~199.9mm/s(real-time valid value) |
| Displacement Measurement Range | 0.001~1.999mm(peak-peak value) |
| Accuracy | ±(5%+2dgts) |
| Low Frequency Acceleration Measuring Frequency Range | 10Hz~1KHz |
| High Frequency Acceleration Measuring Frequency Range | 1KHz~10KHz |
| Velocity Measuring Frequency Range | 10Hz~1KHz |
| Displacement Measuring Frequency Range | 10Hz~500Hz |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.VI.00011 |
|---|---|
| Product Type | Vibration Meter |
| Model No | PVB805 |
| Sensor | Piezoelectric Accelerated Sensor |
| Power | 1.5V AAA battery |
| Data Refresh Time | 500ms |
| Storage Capacity | 200 sets |
| Battery Working Life | beyond four hours without breaks |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%RH~80%RH |
| Storage Temperature | -20°C~60°C |
| Storage Humidity | 20%RH~80%RH |
| Height Above Sea Level | <2000 |
| Dimensions (LxWxH) | 176 mm x 54 mm x 25 mm |
