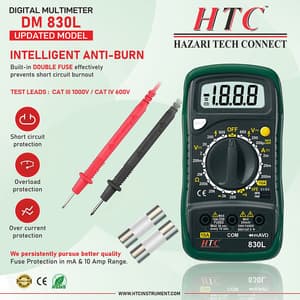

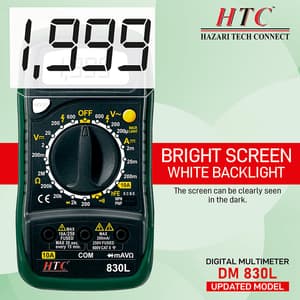

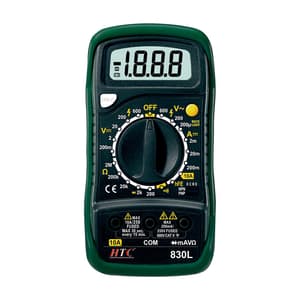

• 3½ Digit Manual Multimeter with Backlight.
• 1,999 Count, Data Hold, Transistor & Diode Test.
• Overload Protection, Low Battery Indication, CAT II 600V.

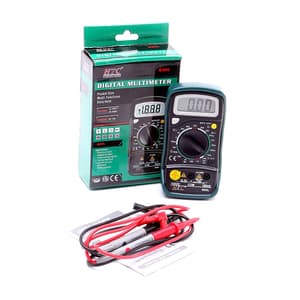

Package Contents:

• Test Lead
• Manual

DC Voltage:

Range	Resolution	Accuracy
200mV	100μV	±0.5% of rdg + 2 digits
2V	1mV
20V	10mV
200V	100mV
600V	1V	±0.8% of rdg + 2 digits



AC Voltage:

Range	Resolution	Accuracy
200V	100mV	±1.2% of rdg + 10 digits
600V	1V



Transistor hFE Test (0-1000):

Range	Test Range	Test Current	Test Voltage
NPN & PNP	0-1000	1b=10μA	Vce=3V



Resistance:

Range	Resolution	Accuracy
200Ω	0.1Ω	±0.8% of rdg + 3 digits
2kΩ	1Ω	±0.8% of rdg + 2 digits
20kΩ	10Ω
200kΩ	100Ω
2MΩ	1KΩ	±1.0% of rdg + 2 digits



DC Current:

Range	Resolution	Accuracy
200μA	0.1μA	±1% of rdg + 2 digits
2mA	1μA
20mA	10μA
200mA	100μA	±1.5% of rdg + 2 digits
10A	10mA	±3% of rdg + 2 digits

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
