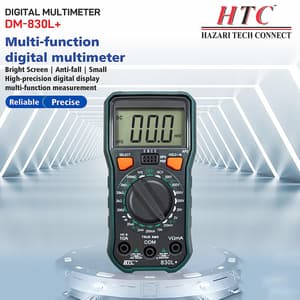

HTC 3-1/2 Digit / 1999 Count Digital Multimeter With Backlight, DM-830L+
Roll over image to zoom zoom_in
- Product Type: Multimeter
- Transistor hFE Test (0 - 1000) Range: NPN & PNP
- Transistor hFE Test (0 - 1000) Test Range: 0 - 1000
- Transistor hFE Test (0 - 1000) Test Current: 1b=15µA
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹623.04 (Incl. of all taxes)
₹528+ ₹95.04 GST (18%)
MRP ₹660
SAVE 20%
5 Business Days
1 Set
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 3½ Digit Manual Multimeter with Backlight
- 1,999 Count
- Data Hold
- True RMS
- NCV
Special Function:
- hFE Test
- Overload Protection
- Low Battery Indication
- CAT II 600V
- Power AAA 1.5V x 2

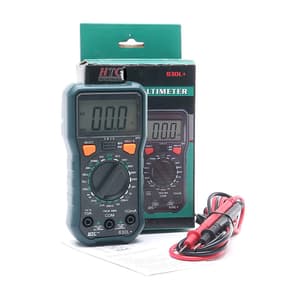

Package Contents:
- Test Lead
- Manual
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 100uV | ±0.5% of rdg + 4 digits |
| 2000mV | 1mV | |
| 20V | 10mV | |
| 200V | 100mV | |
| 600V | 1V |
DC Current:
| Range | Resolution | Accuracy |
| 20uA | 10nA | ±1.0% of rdg + 5 digits |
| 2mA | 10uA | |
| 200mA | 100uA | ±1.0% of rdg + 5 digits |
| 10A | 10mA |
AC Voltage:
| Range | Resolution | Accuracy |
| 200V | 100mV | ±1.0% of rdg + 5 digits |
| 600V | 1V |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 2kΩ | 1Ω | ±0.8% of rdg + 1 digits |
| 20kΩ | 10Ω | |
| 2MΩ | 1kΩ | |
| 200MΩ | 100kΩ | ±1.2% of rdg + 5 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00114 |
|---|---|
| Product Type | Multimeter |
| Model No | DM830L+ |
| Transistor hFE Test (0 - 1000) Range | NPN & PNP |
| Transistor hFE Test (0 - 1000) Test Range | 0 - 1000 |
| Transistor hFE Test (0 - 1000) Test Current | 1b=15µA |
| Transistor hFE Test (0 - 1000) Test Voltage | Vce=1.2V |
| Dimension | 140 (H) x 72 (W) x 37 (D) mm |
