• 3¾ Digit Multimeter with Backlight.
• 3,999 Count.
• Auto Power Off (APO) under natural operation.
• Data Hold, Max./Min.

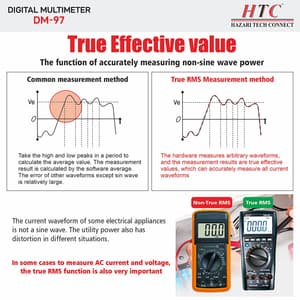

• NCV / True RMS.

Special Function:

• Diode Test Function Protection.
• Transistor Testing Input impedance 10MΩ
• Continuity Buzzer Lower 30Ω+10Ω Sampling Rate 3 times per second.
• Low Battery Display Lower 2.4V AC Frequency Response 40-400Hz.
• Auto Power OFF Approx. 30 min. Power AAA 1.5V X 2.

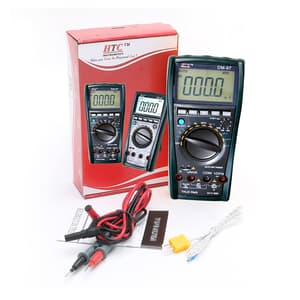

Package Contents:

• Test Leads,
• Sheath,
• Manual,
• TP01 Thermocouple.

DC Voltage:

Range	Resolution	Accuracy
400mV	0.1mV	±0.5% of rdg + 5 digits
4V	1mV
40V	10mV
400V	100mV
1000V	1V	±1.0% of rdg + 5 digits



AC Voltage:

Range	Resolution	Accuracy
400mV	0.1mV	±1.5% of rdg + 10 digits
4V	1mV	±0.8% of rdg + 10 digits
40V	10mV
400V	100mV
750V	1V	±1.0% of rdg + 10 digits



DC Current:

Range	Resolution	Accuracy
400µA	0.1µA	±1.0% of rdg + 5 digits
4000µA	1µA
40mA	10µA
400mA	100µA
4A	1mA	±2.0% of rdg + 5 digits
20A	10mA



AC Current:

Range	Resolution	Accuracy
400µA	0.1µA	±1.5% of rdg + 10 digits
4000µA	1µA
40mA	10µA
400mA	100µA
4A	1mA
20A	10mA	±2.0% of rdg + 10 digits



Capacitance:

Range	Resolution	Accuracy
40nF	10pF	±2.5% of rdg + 6 digits
400nF	100pF	±2.5% of rdg + 5 digits
4μF	1nF
40μF	10nF	±5.0% of rdg + 8 digits
400μF	100nF
4mF	1µF
40mF	10µF



Resistance:

Range	Resolution	Accuracy
400Ω	0.1Ω	±0.8% of rdg + 5 digit
4kΩ	1Ω	±0.8% of rdg + 2 digits
40kΩ	10Ω
400kΩ	100Ω
4MΩ	1KΩ
40MΩ	10KΩ	±1.2% of rdg + 5 digits



Frequency:

Range	Resolution	Accuracy
10Hz	0.001Hz	±0.5% of rdg + 4 digits
100Hz	0.01Hz
1000Hz	0.1Hz
10kHz	1Hz
100kHz	10Hz
1MHz	100Hz
10MHz	1kHz



Temperature:

Range	Resolution	Accuracy
-40°C~1000°C	1°C	<400°C±0.8% of rdg + 4 digits ≥400°C±1.5% of rdg + 15 digits
-0°F~1832°F	1°F	<750°F±1.0% of rdg + 5 digits ≥750°F±1.5% of rdg + 15 digits

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
