HTC 3-3/4 Digit / 3999 Count True RMS Digital Multimeter With Backlight, DM-88

Name: HTC 3-3/4 Digit / 3999 Count True RMS Digital Multimeter With Backlight, DM-88
Brand: HTC
SKU: ME.EL.MU.00117
Price: 1504 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all HTC

SKU: ME.EL.MU.00117

Model: DM88

Roll over image to zoom zoom_in

Visit HTC Store keyboard_double_arrow_right

Key Features

Product Type: Multimeter
Display: 3-3/4 Digit
Dimension: 170 (H) x 86 (W) x 35 (D) mm

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹1774.72 (Incl. of all taxes)

₹1504+ ₹270.72 GST (18%)

MRP ₹1880

SAVE 20%

Dispatch: 5 Business Days

Items in Pack: 1 Set

HSN Code: 90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

3¾ Digit Multimeter with Backlight
3,999 Count
COMS, TTL Logic Test
Auto Power Off (APO) under natural operation

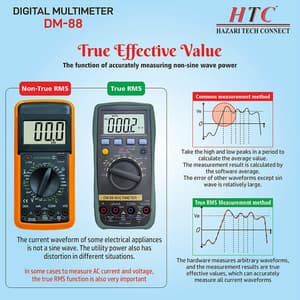

True RMS

Special Function:

Function Protection.
Diode and HFE test Input impedance 10MΩ
Transistor testing Sampling Rate 3 times per second.
Continuity Buzzer Approx. <30+10 AC Frequency Response 40-400Hz.
Low Battery Display Lower 2.4V Power AAA 1.5V X 2.
Auto Power OFF Approx. 30 min.

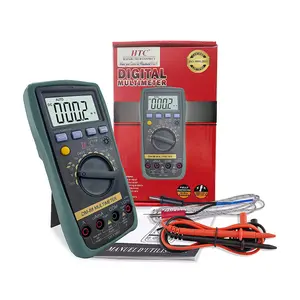

Package Contents:

Test Lead,
Manual,
TP 04 Temperature Probe.

DC Voltage:

Range	Resolution	Accuracy
400mV	0.1mV	±0.5% of rdg + 4 digits
4V	1mV
40V	10mV
400V	100mV
1000V	1V	±1.0% of rdg + 4 digits

AC Voltage:

Range	Resolution	Accuracy
400mV	0.1mV	±1.5% of rdg + 15 digits
4V	1mV	±0.8% of rdg + 6 digits
40V	10mV
400V	100mV
750V	1V	±1.0% of rdg + 6 digits

DC Current:

Range	Resolution	Accuracy
400μA	0.1μA	±1.0% of rdg + 5 digits
4000μA	1μA
40mA	10μA
400mA	100μA
4A	1mA
20A	10mA	±2.0% of rdg + 5 digits

AC Current:

Range	Resolution	Accuracy
400μA	0.1μA	±1.5% of rdg + 5 digits
4000μA	1μA
40mA	10μA
400mA	100μA
4A	1mA
20A	10mA	±2.0% of rdg + 10 digits

Resistance:

Range	Resolution	Accuracy
400Ω	0.1Ω	±0.8% of rdg + 5 digits
4kΩ	1Ω	±0.8% of rdg + 1 digits
40kΩ	10Ω
400kΩ	100Ω
4MΩ	1KΩ
40MΩ	10KΩ	±1.2% of rdg + 5 digits

Capacitance:

Range	Resolution	Accuracy
4nF	1pF	±5.0% of rdg + 8 digits
40nF	10pF	±3.5% of rdg + 8 digits
400nF	100pF
4μF	1nF
40μF	10nF
200μF	100nF	±5.0% of rdg + 8 digits

Frequency:

Range	Resolution	Accuracy
10Hz	0.001Hz	±0.5% of rdg + 4 digits
100Hz	0.01Hz
1000Hz	0.1Hz
10kHz	1Hz
100kHz	10Hz
1MHz	100Hz
30MHz	1kHz

Logic Test:

Range	Accuracy
TTL	>2.5V±0.8V
Logic	<0.8V±0.5V
CMOS	>0.4V±1.0V
Logic	<2.0V±0.5V

Temperature:

Range	Resolution	Accuracy
(-40-1000)°C	<400°C±1.0% of rdg + 5 digits ≥400°C±1.5% of rdg + 15 digits	1°C
