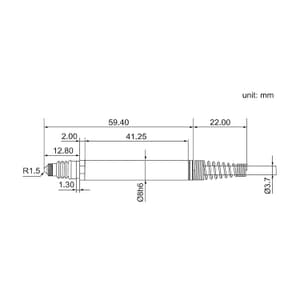

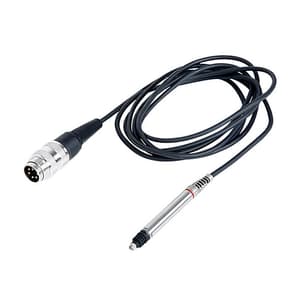

Insize ±0.9 mm Inductance Type Probe, 9420-AP02
Roll over image to zoom zoom_in
- Weight: 16 Grams
- Product Type: Probes & Accessories
- Range: ±0.9mm
- Accuracy: ±0.3+3× |L|³µm, (L is measuring length in mm)
- Sensor type: LVDT (full bridge)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹18496.5 (Incl. of all taxes)
₹15675+ ₹2821.5 GST (18%)
MRP ₹22078
SAVE 29%
7 Business Days
1 Pcs
38220090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- IP65 Waterproof
- Ultra-short length, built-in precision linear ball bearings
- For highly accurate and repeatable displacement measurements of displacement, deformation, dimension, vibration, thickness, expansion, etc. in quality control and metrology applications
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.PR.00159 |
|---|---|
| Product Type | Probes & Accessories |
| Model No | 9420-AP02 |
| Range | ±0.9mm |
| Accuracy | ±0.3+3× |L|³µm, (L is measuring length in mm) |
| Repeatability | 0.15µm |
| Thermal drift | 0.25µm/°C |
| Mechanical Stroke | 2.2 mm |
| Sensor type | LVDT (full bridge) |
| Measuring Force | 0.75N |
| Protective cover | Fluorinated elastomer |
| Contact Type | Carbide |
| Insert thread | M2.5 |
| Working Environment | -10 ~ 60°C, <80% (non-condensing) |
| Storage Temperature | -20 ~ 100°C, <80% (non-condensing) |
| Cable Length | 2m (Customised from 2 - 5m) |
| Output Interface | 5-wire aviation interface |
