• Measure conductivity (MS/m, %IACS) and resistivity (Q•mm2/m) of non-ferromagnetic metals or alloys with eddy current phase detection
• With temperature compensation, even when the temperature of the calibration block and the material are different, test results can be automatically compensated
• Lift-off compensation function ensures accurate results when there are non-conductive layers such as coatings, dust, rough surfaces, etc., and reduces measurement error caused by operation as well
• Measure with high speed and efficiency, results show on screen after probe touch with the material in 1 second
• Data can be saved manually or automatically and exported to Excel with computer software
• Wear-resistant and heat-resistant probe
• Unit switch
• Display with backlight
• Language: English, Chinese, Japanese

Technical Data:

Conductivity	Range	0.3MS/m - 65MS/m or 0.51%IACS-112%IACS
	Unit	MS/m, %IACS
	Resolution	0.01 (<30MS/m or <30%ILACS) 0.1 (30MS/m - 65MS/m or 30%IACS-112%IACS)
	Accuracy	20°C: ±0.5%: 4.00MS/m~65.0MS/m or 6.90%LACS~112.0%LACS 0°C ~ 40°C: ±(1.0%+1d): 0.30MS/m~4.00MS/m ±(1.0%+2d): 0.51%LACS~6.90%LACS ±1.0%: 4.00MS/m~65.0MS/m or 6.90%LACS~112.0%LACS
Resistivity	Range	0.01538Ω.mm²/m ~ 3.3333Ω.mm²/m
	Unit	Ω.mm²/m
	Resolution	0.00001 (<0.00001 Ω.mm²/m) 0.0001 (1.0000 ~ 3.3333 Ω.mm²/m)

Package Content:

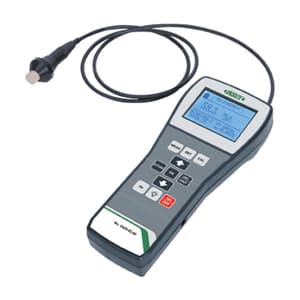

• 1x Eddy Current Conductivity Tester

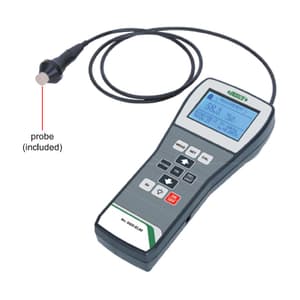

• 1x Probe (0420-TP01)

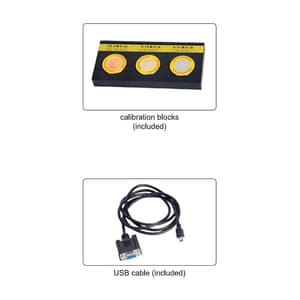

• 3x Calibration Block (0420-CB01)
• 1x USB Cable
• 1x AC/DC Adapter
