• Suitable for electric power, metallurgy, petrochemical, scientific research and teaching, manufacturing, rail transit, building testing, electronic equipment overhaul, mechanical equipment maintenance, etc.

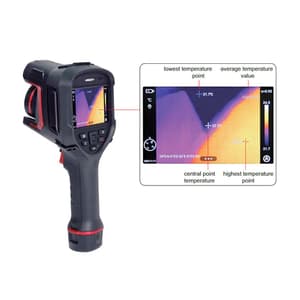

• Four image presentation: IR, VIS, MIF, PIP
• Real-time image can be photographed and video recorded
• Software is included: image browsing, image parameter editing, infrared image analysis, batch report generation, video editing, etc.
• WIFI real-time sharing, one-click connection to mobile device

Technical Data:

Measurement and analysis	Measurement range	support auto-switching: -40°C~150°C, 0°C-650°C
	Measurement accuracy	±2°C or ±2%, whichever is greater
	Analyzed target	spotx5, linex5, areax5
	Tracking/alarm	Full screen maximum, minimum and average temperature tracking; The maxium, minimum and average temperature tracking of analyzed target; Full screen temperature threshold alarm (image, voice and flash)
	Temperature measuring parameter	emissivity, reflected temperature, target distance, humidity, atmospheric, transmittance, optical transmittance, dew point
	Other	isothermals. smart stroke. intelligently calculate the area
Image Display	Display Screen	4.3", 800x480 pixel touchscreen LCD
	Digital Camera	5 MP
	Image Code	IR, VIS, MIF, PIP
	Image Adjustment	level span mode: automatic, semi-automatic, manual
	Color Palettes	white hot, iron red, arctic, rainbow 2, hot iron, rainbow 1, fulgurite, medical, tint, black hot, blue hot, sepia, green hot, ice and fire, amber, customized
Function	Recording Function	Photo & Video (infrared & visible light)
	Cloud Service	Available
	Other	Customized physical button, Intelligent diagnosis, OTA update
Storage & Transmission	Storage	local storage (64GB) and external 64GB SD
	Image Storage	JPG with temperature information
	Video Storage	MP4 (without temperature information), Can be used to record audio synchronously; Irgd (with temperature information), up to 30 Hz for temperature analysis
	External Interface	Type-C, SD Card Slot
	WiFi	can be connected to the mobile terminal for image and real-time video transmission
	Bluetooth	bluetooth 5.0, support image transmission (only for Android)
Power System	Battery Type	Lithium-ion rechargeable battery, working time>5 hours
	Charging Mode	Type-C charging; PC/portable charger; capable of charging while using
	Charging Time	90% of full charge in 2.5 hours
Environmental Parameter	Operating Temperature	-20°C ~ 50°C
	Storage Temperature	-40°C ~ 60°D
	Protection	IP54, 2-meter drop test
	Certification	CE, FCC, ROHS
Physical Parameter	Hardware	illuminator, microphone, speaker, electronic compass, GPS

Standard Delivery:

• 1x Main Unit
• 1x 64GB SD Card
• 2x Lithium-ion Battery
• 1x Desktop Charger
• 1x Power Adapter
• 1x Software
