• According to GB/T 19077-2016, ISO 13320:2009
• Suitable for any powdered material, particularly good for materials which react with water, or shape change in liquids
• It can be used for metal and non-metal powder, cements, pharmaceuticals, fillers, catalysts, additives, lubricants, coal powder, mud and sand, dust, foodstuffs, graphites, photographic materials, calcium carbonate, kaolin and other powdery materials
• Using air as the dispersing medium and the principle of turbulent dispersion, ensure that the sample is thoroughly dispersed

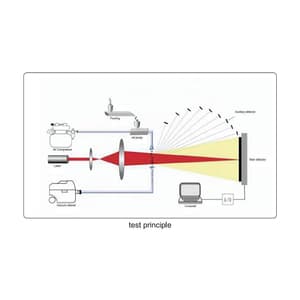

• Based on the MIE scattering theory, converging Fourier transform optical path, and with He-Ne laser photodetectors
• Just need put in the sample, dust collection, air supply, feeding are all done automatically

Software Functions:

• Analysis mode: Free distribution, R-R distribution, logarithm normal distribution, mesh number classification
• Statistic method: volume distribution, quantity distribution
• Statistic comparison: Several testing results of samples, different batches of samples testing result, samples before and after processing, test result of samples in different time
• User-defined analysis: Figure out percentage according to the particle size / Figure out particle size according to the percentage / Figure out percentage according to the particle size range
• Operation mode: Automatically control air flow speed, dispersion,test and analysis
• Test report: word, excel, photo (bmp), text etc.

Package Content:

• 1x Dry Laser Particle Size Analyzer
• 1x Air compressor
• 1x Dust collector
• 1x Diamond standard sample
• 2x Sampling spoon
• 1x Computer
• 1 Set x Toolkit (Including mirror paper, screwdriver, fuse, PTFE thread seal tape, brush, rubber suction bulb)
