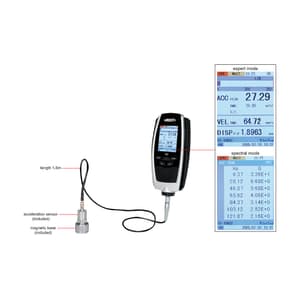

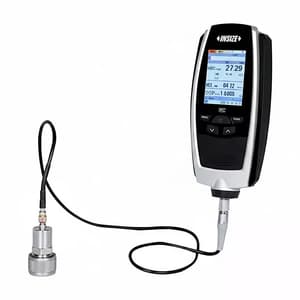

Insize 0.1 - 392m/s² Standard Type Vibration Meter With Three Parameters, 0024-VM40
Roll over image to zoom zoom_in
- Weight: 300 Grams
- Product Type: Vibration Meter
- Acceleration Range: 0.1 - 392m/s² (Peak Value)
- Velocity Range: 0.01 - 800mm/s (RMS Value)
- Displacement Range: 0.001 - 5 mm (Peak - Peak Value)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹98629.12 (Incl. of all taxes)
₹83584+ ₹15045.12 GST (18%)
MRP ₹117724
SAVE 29%
5 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Adjustable Backlight
- Suitable for factory inspection, status monitoring and fault diagnosis of mechanical equipments such as motors, pumps, fans, household appliances, compressors, generators, gearboxes, etc.
- Can measure the peak value and RMS value of acceleration, RMS value of velocity and peak-to-peak value of displacement
- Measure mode: expert mode and spectral mode
- 2.4" TFT dot-matrix color screen
- Automatic power off
- Battery level display
- Mobile App is included (only for Android system): upload data stored in the device to the mobile phone
- Data Storage: 99 Sets of data, with each set capable of storing 50 data points or one spectrum data list
Window Functions:
- Rectangular window
- Hanning window
- Hamming window
- Flat-top window
What's Included In This Package:
- 1x Main Unit
- 1x Accelerometer (including cable)
- 1x Magnetic base
- 2x Batteries (AAA)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.VI.00023 |
|---|---|
| Product Type | Vibration Meter |
| Model No | 0024-VM40 |
| Acceleration Range | 0.1 - 392m/s² (Peak Value) |
| Velocity Range | 0.01 - 800mm/s (RMS Value) |
| Displacement Range | 0.001 - 5 mm (Peak - Peak Value) |
| Frequency | 10Hz - 10kHz (Acceleration) / 10Hz - 1kHz (Velocity) / 10Hz - 500Hz (Displacement) |
| Frequency Response | ±5% |
| Linearity | ±5% |
| Display Size | 320 x 240 Pixel |
| Data Interface | Bluetooth 4.0 |
| Operation Environment | -10°C ~ 40°C (Temperature) / <90%RH (Humidity) |
| Power Supply | 2x AA Batteries (for 15 Hours Working) |
| Dimensions (L x W x H) | 150 x 68 x 33 mm |
