Insize 0 - 100% LEL Gas Detection Transmitter, 0613-SG01
Roll over image to zoom zoom_in
- Weight: 1.2 Kg
- Product Type: Gas Detectors & Analyzers
- Gas: CH4
- Range: 0 - 100%LEL
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹8412.22 (Incl. of all taxes)
₹7129+ ₹1283.22 GST (18%)
MRP ₹10484
SAVE 32%
7 Business Days
1 Pcs
90271000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- IP65 Waterproof
- Continuous detection of gas concentration

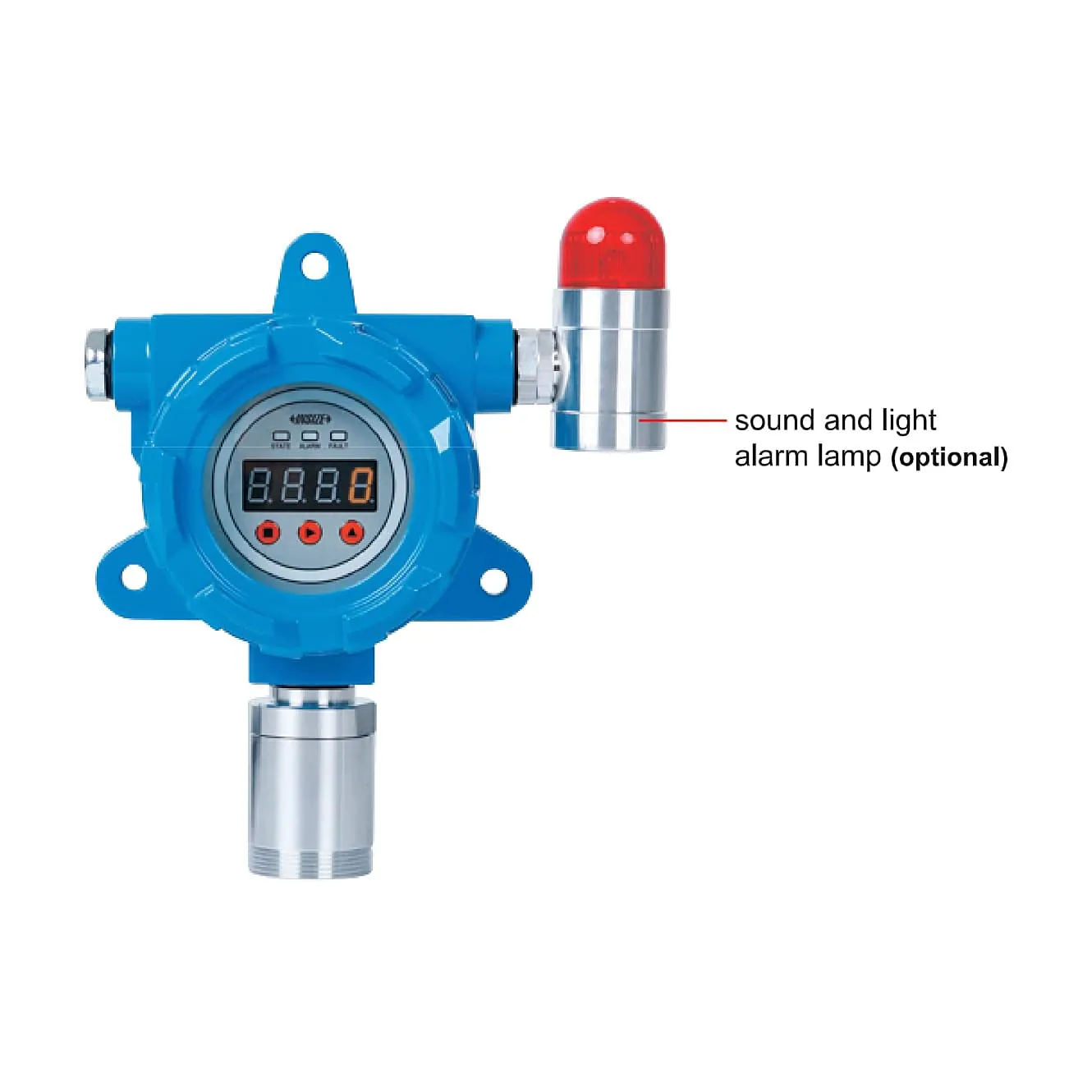

- Customized secondary alarm, light alarm indication, optional sound and light alarm lamp
- Can be customized other gases, such as O2, CO, H2S, NH3 etc.
- Fixed installation, wall-mounted installation, longitudinal tube installation
- Quickly replaceable gas sensors
- Adjustable calibration values
Alarm Output:
- Passive Switching Output (max: AC 220 3A)
- Independent sound and light alarm output
What's Included in this Package:
- 1x Gas Detection Transmitter
- 1x Calibration Remote Control
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.IN.GA.00060 |
|---|---|
| Product Type | Gas Detectors & Analyzers |
| Model No | 0613-SG01 |
| Gas | CH4 |
| Range | 0 - 100%LEL |
| Resolution | 1%LEL |
| Accuracy | ±5%FS |
| Response Time | <30s |
| Alarm Setting | Primary Alarm & Secondary Alarm |
| Signal Output | RS485, (4 - 20)mA |
| Cable | 3 x 1.5mm² or 4x2.5mm² Shield Cable |
| Transmission Distance | <1000m |
| Working Environment | -40 ~ 70°C, <95%RH (No Condensation) |
| Sampling Method | Diffusion |
| Protection Level | IP65 Waterproof |
| Explosion Proof Level | Exd II CT6 Gb |
| Power Supply | DC24V |

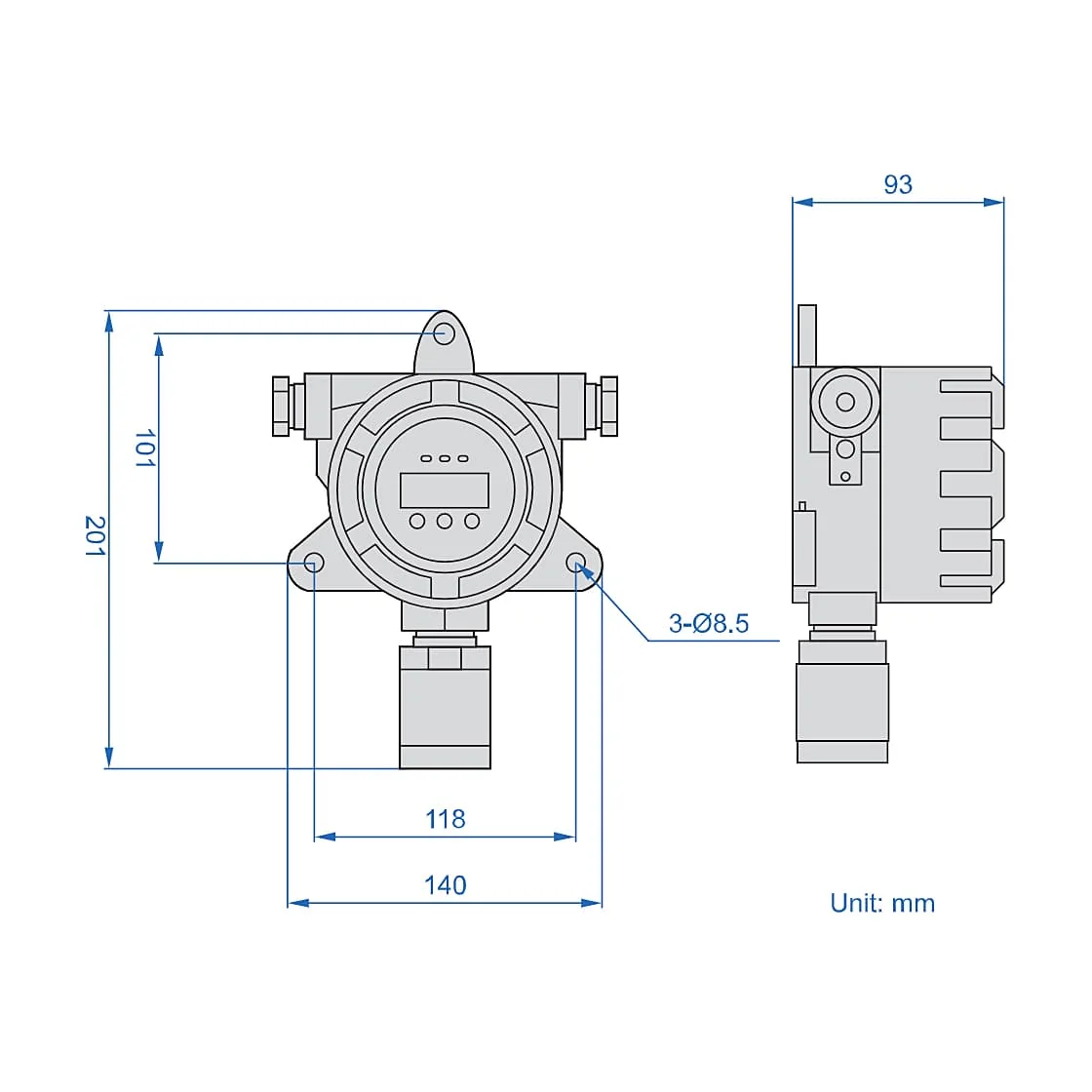

| Dimensions (L x W x H) | 201 x 140 x 93 mm |
