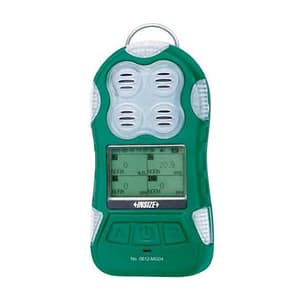

Insize EX / O2 / CO / H2S Four-in-One Portable Multi Gas Detector, 0612-MG04
Roll over the image to zoom in
Key Features
- Product Type: Gas Detectors & Analyzers
- Weight: 310 g
- Accuracy: ±5%FS
- Response Time: T90<60s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,675 (Incl. of all taxes)
₹13,284 + ₹2,391 GST (18%)
MRP was MRP ₹20,128
Save 34%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
Detect combustible gas (EX, including CH, C,H, H., etc), oxygen (O2), carbon monoxide (CO) and hydrogen sulfide (H.S) by default, optional configuration includes other toxic gases such as NO, NH, PH3, etc; support more than 30 types of gas sensors, flexible sensor combination and customization available.
Features:
- Adjustable alarm level, alarm mode: sound, light, vibration and screen display
- Adjustable calibration level
- Sampling method: natural diffusion
- High concentration protection for sensor

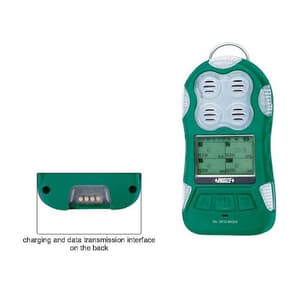

- Data transmission via charging interface
- Up to 1000 alarm records storage capacity
- Self-test on startup
- Display with backlight
- Language: English, Chinese and Spanish (Portuguese and Russian customizable)
- Low battery indication
- Explosion proof level: Ex ib IIC T4 Gb
What's Included in this Package:
- 1x Multi-Gas Detector
- 1x Calibration Cap
- Software & USB Cable
- AC/DC Adapter
Technical Data:
| Gas | Range | Resolution |
| Combustible Gas (EX) | 0 - 100% LEL | 1% LEL |
| O2 | 0 - 30% vol | 0.1% vol |
| CO | 0 - 1000 ppm | 1 ppm |
| H2S | 0 - 100 ppm | 1 ppm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Accuracy | ±5%FS |
|---|---|
| Response Time | T90<60s |
| Operation Environment | -10°C to 50°C (Temperature) / <95%RH (Humidity) / No Condensation |
| Sensor Lifetime | 2 Years (Depending on working Environment) |
| Power Supply | 3.7V Rechargeable Li-ion Battery, Working Time > 8h |
| Dimension (L X W X H) | 150x72x48 mm |
