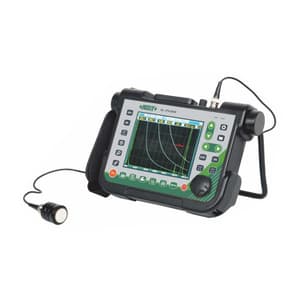

Insize 0 - 15000 mm Digital Ultrasonic Flaw Detector (Basic Type), UFD-B450
Roll over the image to zoom in
Key Features
- Product Type: Detectors
- Weight: 1.13 kg
- Measuring Range (mm): 0 - 15000 mm
- Working Frequency: 1 - 20MHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,05,602 (Incl. of all taxes)
₹1,74,239 + ₹31,363 GST (18%)
MRP was MRP ₹2,52,520
Save 31%
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Full plastic housing with tempered glass panel, extremely hard, wear-resistant and scratch-resistant
- Full-digital multi-color high resolution (640x480 pixels) TFT LCD display
- The operation interface style can be selected according to the working environment, and the brightness of LCD can be set freely
- Selectable frequency ranges (automatically set by the instrument) to match probe for optimum performance.
- Can choose to set the incoming wave alarm or lost wave alarm, accompanied by LED light display
- Real-time screenshots of all pages and flaw detection reports, and save them as BMP pictures to U disk
- Export the flaw detection report as a PDF file
- Unique Fn multifunction key design
- There is no limit of the number and duration of video recording through U disk
- Memory of 500 channel files to store calibration setups and probe parameter
- Memory of 1000 wave report files to store A-Scan wave and settings.
Functions:
| Flaw detection standard | Built-in common flaw detection standards, direct call, convenient and fast |
| Auto Calibration | Automatic calibration of probe zero offset, probe angle (K value) and material velocity |
| Peak hold | Compare frozen peak waveforms to live A-Scans to easily interpret test results |
| Flaw locating | Live display sound-path, projection (surface distance), depth, amplitude |
| Flaw discrimination | Automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection |
| Flaw sizing | The equivalent dB value of defects or equivalent size of defects are displayed in real time |
| Curved surface Correction | Used for flaw detection of curved workpiece, it can display the circumferential position of defects in real time |
| DAC/AVG | The curve is automatically generated, and the sampling points can be compensated and corrected. The curve automatically floats with the gain, automatically expands with the detection distance, and automatically moves with the delay time. It can display the AVG curve of any aperture |
| AWS D1.1 | Choosing this standard can reduce manual calculations and improve detection efficiency |
| Weld Diagram | Support V-type, T-type, L-type and other weld types, acoustic path navigation real-time display, weld and defect location real-time display, scaling, easy to locate defects |
| Automatic rating | Select different AWS standards, automatically calculate the rating of defects and display |
| Crack height | The crack height is measured and calculated automatically by the diffracted wave at the end |
| Gate magnify | Spreading of the gate range over the entire screen width |
| Continuous record | Video recording and playback |
| Echo Coding | Display 1 - 9 echo display area in different colors, used to analyze the defect position |
| Scane Freeze | Display freeze holds waveform and test distance data |
| Peak mark | Capture and mark the peak in real time |
| B scan | Intuitively display the defect shape of the workpiece and the detection result is more intuitive |
Technical Data:
| Probe Selection | Single crystal probe, Dual crystal probe, Penetrating probe, Climbing probe |
| Pulse Energy | 100V, 200V, 250V, 300V, 350V, 400V, 450V, 500V (Selectable) |
| Rectification | Positive halfwave, Negative halfwave, Full wave, RF |
| Gates | Two independent gates controllable over entire sweep range |
| Trigger | Peak Trigger & Edge Trigger |
| Alarms | Threshold Positive / Negative with LED Flash |
Specification of Probes
| UFD-T40 | Frequency: 2.5MHz |
| Size: Ø20 mm | |
| Probe Type: Single-element Straight Probe | |
| Transducer Sensor Angle: 90° | |
| UFD-T41 | Frequency: 4.0MHz |
| Size: 8 x 9 mm | |
| Probe Type: Single-element angle probe | |
| Transducer Sensor Angle: 60° |

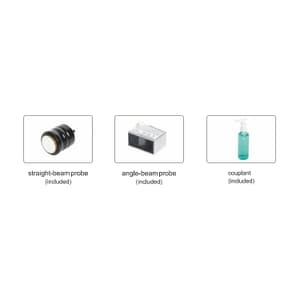

Package Content:
- 1x Digital Ultrasonic Flaw Detector
- 1x Single-element straight probe UFD-T40
- 1x Single-element angle probe UFD-T61
- 1x USB Cable
- 1 Bottle x Couplant
- 1x Probe Connecting Cable
- 1x USB Disk
- 1x Power Adapter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range (mm) | 0 - 15000 mm |
|---|---|
| Working Frequency | 1 - 20MHz |
| Material Velocity | 100 - 20000m/s |
| Repitition Frequency | 20 - 2000Hz |
| Dynamic Range | >26dB |
| Vertical Linearity | <5.0% |
| Horizontal Linearity | <0.5% |
| Resolving Power | >32dB |
| Sensitivity Leavings | >54dB |
| Suppression | 0 - 80% |
| Noise | <10% |
| Probe Damping | 50, 150, 250 & 500 ohm (Selectable) |
| Interface | USB 2.0 |
| Operating Temperature | -10 ~ 50°C |
| Relative Humidity | 20 - 95%RH |
| Power | Built-in Rechargeable Battery |
| Dimension (mm) | 230 x 157 x 52 mm |
