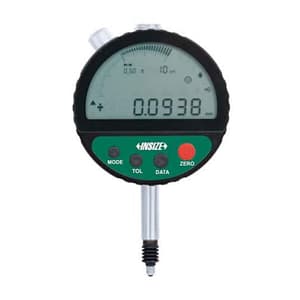

Insize 0 - 2 mm / 0.08 inch Inductive Digital Comparator, 2149-2
Roll over image to zoom zoom_in
- Product Type: Digital Indicators
- Range (mm): 0 - 2 mm
- Range (Inches): 0 - 0.08 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹38060.9 (Incl. of all taxes)
₹32255+ ₹5805.9 GST (18%)
MRP ₹47434
SAVE 32%
3 Business Days
1 Pcs
90329000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- IP54 dust/waterproof / Data output
- Built-in wireless transmission
- Reading in digital and analog
- The display can be rotated by 320°
- It Can store 10 set parameters, and the parameter can be searched and recalled
- 999 groups value can be stored
- Touch sensor: use the sensor to transmit data, avoiding press the button to cause
deformation of the dial indicator stand and affect the zero position - Button function: on/off, zero, data hold, measuring direction change, inch/metric conversion, data preset, absolute/incremental measurement, max./min./TIR measurement, tolerance Go and No-Go display, data output, analog pointer resolution and range change, print data
- Power: rechargeable battery, for 12 hours continuous working
- Ruby probe
- Optional accessory: wireless receiver (code 2149-RE, transmission distance is 2 meters), printer (code ISF-DF-PRINTER).
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.DI.00284 |
|---|---|
| Product Type | Digital Indicators |
| Model No | 2149-2 |
| Range (mm) | 0 - 2 mm |
| Range (Inches) | 0 - 0.08 inch |
| Resolution | 0.1µm / 0.000005 inch |
| Accuracy | 0.5µm |
| Hysteresis | 0.2µm |
| Repeatability | 0.3µm |
| Measuring Force | 0.8 - 1N |
