• Suitable for both magnetic and non-magnetic metal substrates
• Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate. Substrate: iron, steel, magnetic stainless steel, Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
• Can measure the thickness of non-conductive coating on non-magnetic metal substrate, Substrate: copper, aluminum, zinc, non-magnetic stainless steel, Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)

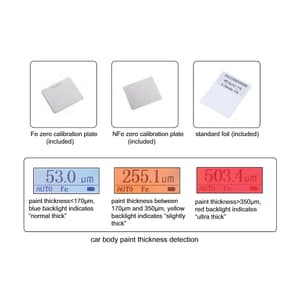

• Can quickly detect the paint thickness of iron and aluminum body of car, three colors of backlight indication, Can identify non-metal shell and iron powder putty layer

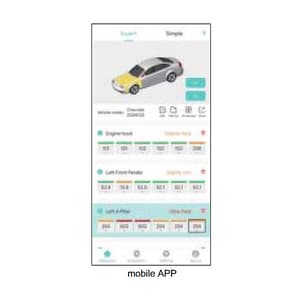

• Can connect to mobile APP, measure and generate test reports in real time, and save or share the report
• Built-in multiple languages
• Store 9 measuring records
• Small and portable, easy for operation

Resolution:

0.1µm (Range<100µm)

1µm (100µm < Range < 1000µm)

0.01 mm (1 mm < Range < 3 mm)

Standard Delivery:

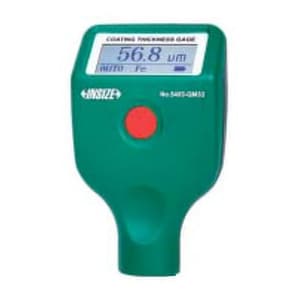

• 1x Coating Thickness Gauge
• 1x Fe Zero Calibration Plate
• 1x NFe Zero Calibration Plate
• 1x Standard Foil (100µm)
• 2x 1.5V AAA Batteries

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
