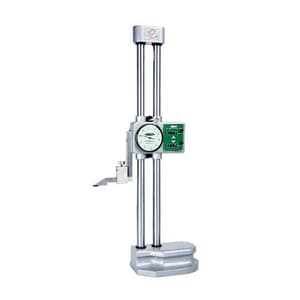

Insize 0 - 600 mm Dial Height Gauge, 1351-600
Roll over the image to zoom in
Key Features
- Product Type: Height Gauge
- Range (mm): 0 - 600 mm
- Range (Inches): 0 - 24 inch
- Accuracy: ±0.05 mm
- Length (mm): 810 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹41,233 (Incl. of all taxes)
₹34,943 + ₹6,290 GST (18%)
MRP was MRP ₹49,215
Save 29%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Dial indicator graduation: 0.01mm
- One counter reads in the plus direction and another in the minus direction, so incremental measurement can be made in either direction
- Carbide tipped scriber
- Made of stainless steel (except the base)
- With driving wheel

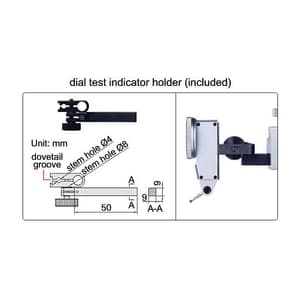

- With dial test indicator holder
- Supplied with dust cover
- Optional accessory: clamp for protractors (code 2372-CLAMP)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 600 mm |
|---|---|
| Range (Inches) | 0 - 24 inch |
| Type of Product | Dial Type Height Gauge |
| Graduation | 0.01 mm |
| Accuracy | ±0.05 mm |
| Length (mm) | 810 mm |

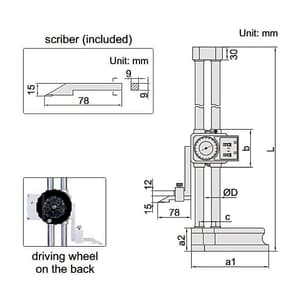

| A1 | 180 mm |
| A2 | 54 mm |
| B | 88 mm |
| C | 38 mm |
| ØD | 20 mm |
| Material | Stainless Steel |
