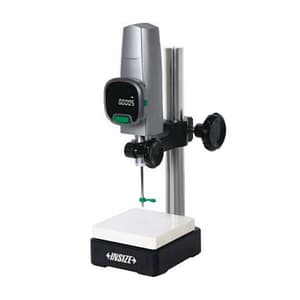

Insize 50 mm / 2 inch High Precision Digital Height Gauge, 1155-505
Roll over the image to zoom in
Key Features
- Product Type: Height Gauge
- Range (mm): 0.50 mm
- Range (Inches): 0 - 2 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,37,181 (Incl. of all taxes)
₹1,16,255 + ₹20,926 GST (18%)
MRP was MRP ₹2,27,951
Save 49%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights

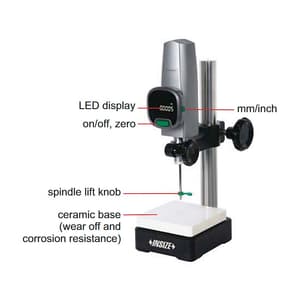

- High stability, high precision, high response speed (5000mm/s)
- High-brightness LED display
- Ceramic base flatness: 1um
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0.50 mm |
|---|---|
| Range (Inches) | 0 - 2 inch |
| Type of Product | Digimatic Height Gauge |
| Resolution | 0.5um/0.00002" (Can switch to: 1um/0.00005") |
| Accuracy (20°C) | 1.5 um |
| Measuring Force | 0.8 - 1.2N |
| Output | USB |
| Power Supply | 5V/1A (Adaptor or Charge Pal) |
