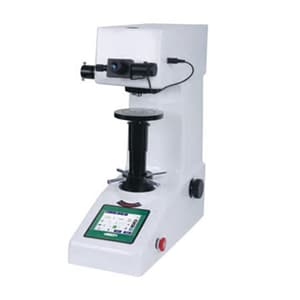

Insize 1 - 30kgf Digital Vickers Hardness Tester (Standard Type), HDT-VH31
Roll over image to zoom zoom_in
- Weight: 55 Kg
- Product Type: Hardness Tester
- Test Force: 1kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf
- Vickers Scales: HV1, HV3, HV5, HV10, HV20, HV30
- Range (HV): 8 - 3000HV
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹254452.84 (Incl. of all taxes)
₹215638+ ₹38814.84 GST (18%)
MRP ₹371789
SAVE 42%
3 Business Days
1 Set
90248091
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

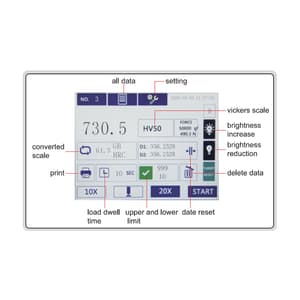

- Touch screen color LCD display
- Data storage and average value calculation
- Automatical switch between the indender and objective lens
- According to ISO 6507
- Motor-Driven Turret
- Inspection Certificate

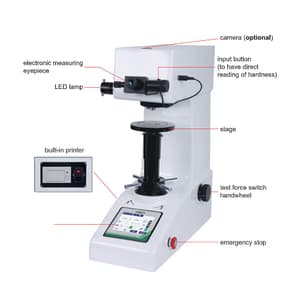

- Press the input button to have a direct reading of the hardness
- Converted Scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Standard Delivery:
| Main unit | 1 pc |
| 10X, 20X Objective | 1 pc of each |
| Vickers Indenter | 1 pc |
| Hardness Test Block | 2 pcs |

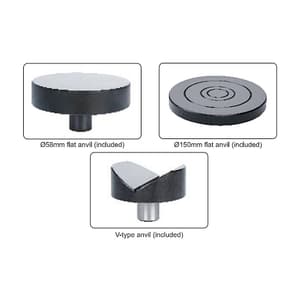

| Ø58mm Flat Anvil | 1 pc |
| Ø150mm Flat Anvil | 1 pc |
| V-type Anvil | 1 pc |
| Anti-dust Cover | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.HA.00034 |
|---|---|
| Product Type | Hardness Tester |
| Model No | HDT-VH31 |
| Test Force | 1kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf |
| Vickers Scales | HV1, HV3, HV5, HV10, HV20, HV30 |
| Range (HV) | 8 - 3000HV |
| Length Measurement Resolution | 0.5µm |
| Objective/Indenter Switch | Motor Driven Turret |
| Stage Lifting | Manual |
| Load Control | Automatic (load/dwell/unload) |
| Load Dwell Time | 1 - 60 Second |
| Objective | 10X, 20X |
| Eyepiece | 10X |
| Total Magnification | 100X (For Measurement or Observation), 200X (For Measurement) |
| Max. Workpiece Height | 175 mm |
| Max. Testing Width | 135 mm (From the center of indenter to the wall of main body) |
| Power Supply | 220V, 50/60Hz |
| Dimension | 580 x 320 x 660 mm |
