• Measurement through coating & Rust layer, Non-contact Measurement, Temperature Compensation, No Coupling agent required
• No surface polishing required, can penetrate anti-corrosion coating and rust (maximum 4 mm), no coupling agent required
• Normal temperature permanent magnetic probe and high temperature permanent magnetic probe are using weak permanent magnet, to replace the strong permanent magnet commonly used nowadays. Completely solve the problem that EMAT transducer suction force is too large and difficult to move, so that the manual inspection is more simple, convenient and safe
• Temperature compensation function, can input the actual temperature of high-temperature components to automatically compensate the speed of sound, making the thickness measurement value more accurate
• Measurement of non verticality up to +25°, low verticality requirements for probe placement
• Scanning mode: A-scan format, B-scan image format display of thickness measurement values
• 50,000 thickness values and 4,000 A-scan or B-scan data can be stored
• Integrated high-brightness LEDs on the back for easy on-site illumination

Specification of Transducer:

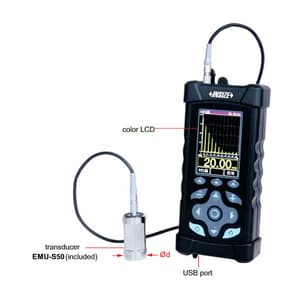

• Model No: EMU-S50
• Magnetism: Weak Permanent Magnet
• Magnetic Force: <15N
• Diameter (Ød): Ø30 mm
• Applicable Temperature: -10 ~ +60°C
• Application: General Use

Package Content:

Electromagnetic Ultrasonic Thickness Gauge	1 pc
Transducer EMU-S50	1 pc
Calibration Block (Diameter Ø36x Wall Thickness 10 mm)	1 pc
4GB USB Flash Disk	1 pc
USB Cable	1 pc
