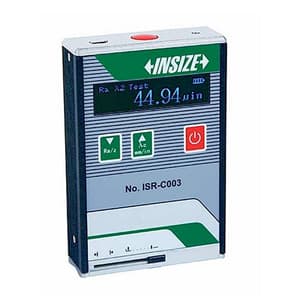

Insize 1-50µm Range Roughness Tester, ISR-C003

Name: Insize 1-50µm Range Roughness Tester, ISR-C003
Brand: Insize
SKU: ME.DI.RO.00001
Price: 48307 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Insize

SKU: ME.DI.RO.00001

Model: ISR-C003

Roll over image to zoom zoom_in

Visit Insize Store keyboard_double_arrow_right

Key Features

Weight: 200 Grams
Product Type: Roughness Tester
Accuracy: +/- 10%
Measuring Force: 5mN
Traverse speed: 0.75mm/s

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹57002.26 (Incl. of all taxes)

₹48307+ ₹8695.26 GST (18%)

MRP ₹105015

SAVE 54%

Dispatch: 3 Business Days

Items in Pack: 1 Pcs

HSN Code: 90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Unit:µm, µin
Automatic Power off.

Standard Delivery:

Main unit	1 pc

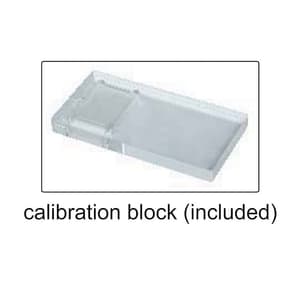

Calibration block	1 pc
AC/DC adapter	1 pc

Optional Accessory:

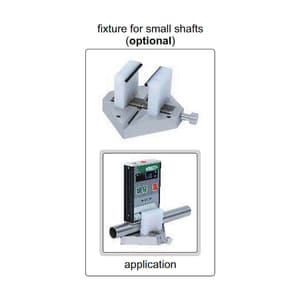

Fixture for small shafts

ISR-C003-FIXTURE

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.DI.RO.00001
Product Type	Roughness Tester
Model No	ISR-C003
Parameters	Ra, Rz, Rq, Rt
Range	Ra, Rq: 0.05~15um Rz, Rt: 0.1~50um
Accuracy	+/- 10%
Resolution (Ra)	0.01um
Probe Type	Piezoelectric
Probe Stylus Radius / Angle	10um/90°
Probe Stylus Material	Diamond
Measuring Force	5mN
Measuring unit	um/uin
Cut off	0.25/0.8/2.5mm
Evaluation length	1.25mm for cut off 0.25mm 4mm for cut off 0.8mm 5mm for cut off 2.5mm
Traverse speed	0.75mm/s
Power	built-in rechargable battery
Dimensions (L x W x H)	106x70x24mm
