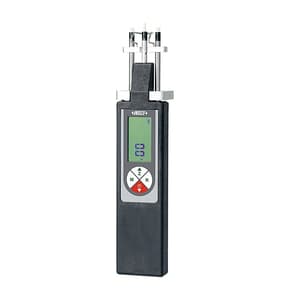

Insize 1 - 500cN High-Speed Wire Tension Meter, ISF-DV500
Roll over the image to zoom in
Key Features
- Product Type: Tension Meter
- Weight: 255 g
- Range of Test Force: 1 - 500cN
- Test Force Resolution: 0.1cN
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,25,584 (Incl. of all taxes)
₹1,06,427 + ₹19,157 GST (18%)
MRP was MRP ₹1,52,038
Save 30%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Inspection Certificate
- For tension measurement of fine materials: textiles, chemical fibers, fine wires
- With ball bearing guide pulley measuring head
- Unit: g, cN
- Record max, min, avg during measurement
- Built-in rechargeable battery, fully charged, operate for about 20h
Package Content:
- 1x Wire Tension Meter
- 1x Power Adapter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Accuracy Class | ±3%FS |
|---|---|
| Range of Test Force | 1 - 500cN |
| Test Force Resolution | 0.1cN |
| Width of Measuring Head | 30 mm |
| Factory Calibrated Wire Diameter | 0.20 mm |
| Range of Diameter | 0.05 - 0.2 mm |
| Max. Line Speed | 6000 m/min |
| Environmental Requirements | 10 - 45°C (Temperature) / <90%RH (Humidity) |
| Power Supply | Built-in Rechargeable Battery |
| Dimensions (L x W x H) | 230 x 45 x 35 mm |
