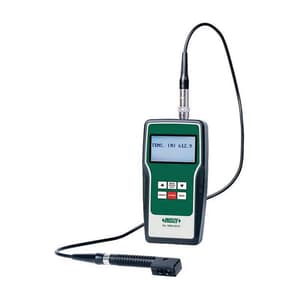

Insize 10 - 800Hz Laser Belt Tension Meter, 5900-HZ18
Roll over the image to zoom in
Key Features
- Product Type: Tension Meter
- Weight: 180 g
- Measuring Range (Hz): 10 - 800Hz
- Accuracy: ±5%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,09,059 (Incl. of all taxes)
₹92,423 + ₹16,636 GST (18%)
Out of Stock
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Laser sensor, direct measurement, easy to use

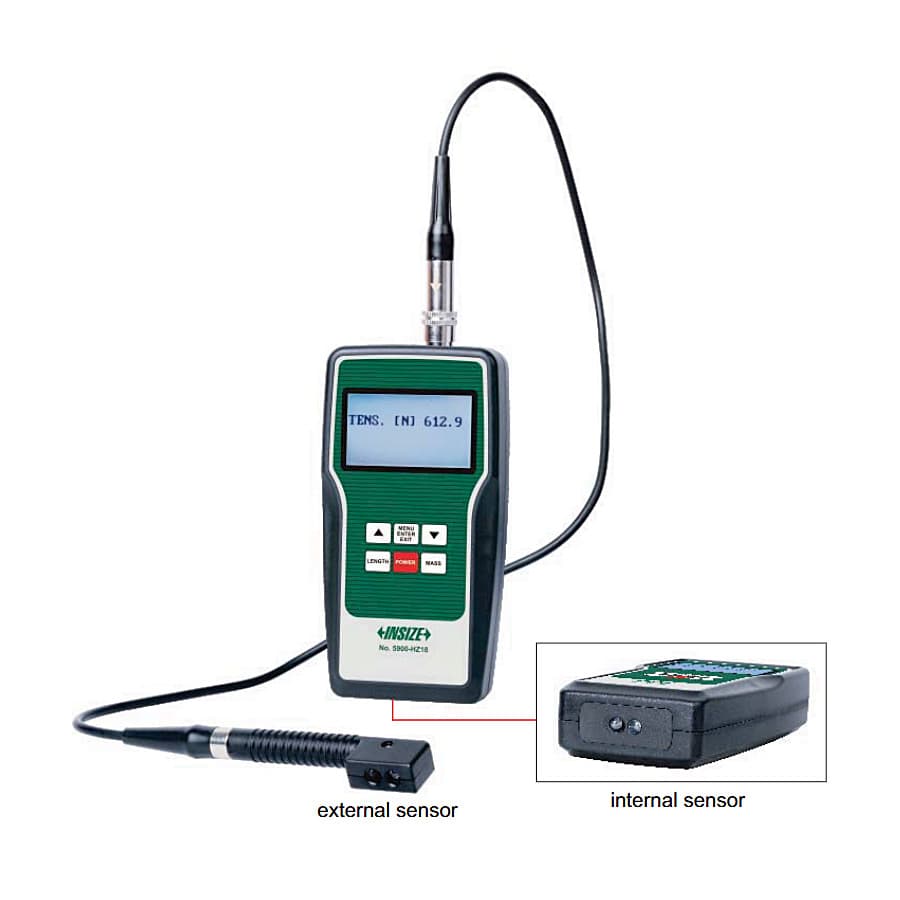

- Two sensors: internal and external, external sensor is suitable for measurement in narrow spaces
- Automatic power off
Package Content:
- 1 x Tension Meter
- 1 x Extension Sensor
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Measuring Range (Hz) | 10 - 800Hz |
|---|---|
| Accuracy | ±5% |
| Unit | N, lbf |
| Measuring Distance (mm) | 3 - 20 mm |
| Operation Temperature | 10 - 50°C |
| Power Supply | 4 x 1.5V AAA Batteries |
| Input Parameter Range | 99.99m (Max. free belt length) / 9.999kg/m (max. Belt Weight) |
| Dimension (mm) | 178 x 72 x 34 mm (main unit) / 124 x 21 x 12 mm (External Sensor) |
