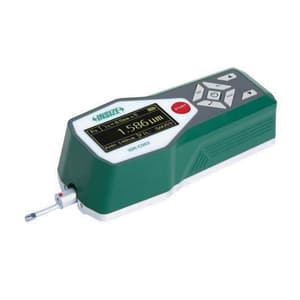

Insize 1-60µm Range Roughness Tester, ISR-C002
Roll over image to zoom zoom_in
- Weight: 400 Grams
- Product Type: Roughness Tester
- Accuracy: +/- 10%
- Measuring Force: 5mN
- Traverse speed: 0.75mm/s
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹96731.68 (Incl. of all taxes)
₹81976+ ₹14755.68 GST (18%)
MRP ₹143818
SAVE 43%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 21 roughness parameters

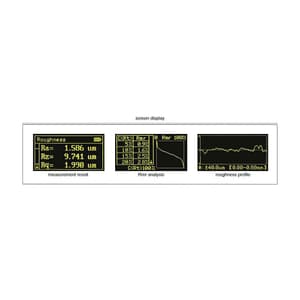

- Display roughness values, profile, and curve
- The memory of a maximum of 100 results
- Automatic power off
- Can be controlled by a computer
- Data output.
Standard Delivery:
| Main unit | 1 pc |
| Standard probe | 1 pc |
| Calibration block and support | 1 pc of each |

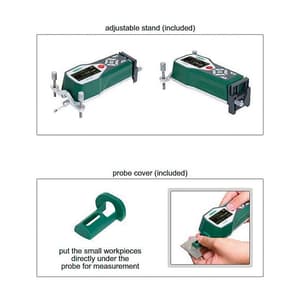

| Adjustable stand | 1 pc |
| Probe cover | 1 pc |
| Software | 1 pc |
| AC/DC adapter | 1 pc |
Optional Accessory:

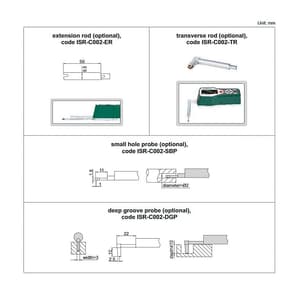

| Extension rod | ISR-C002-ER |
| Transverse rod | ISR-C002-TR |
| Deep groove probe | ISR-C002-DGP |
| Small hole probe | ISR-C002-SBP |

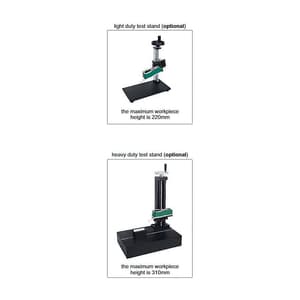

| light duty test stand | ISR-C002-STAND1 |
| Heavy-duty test stand | ISR-C002-STAND |
| printer | ISR-C002-PRINTER |
| Data transmission cable | ISR-C002-SPC |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.RO.00002 |
|---|---|
| Product Type | Roughness Tester |
| Model No | ISR-C002 |
| Parameters | Ra, Rz, Rq, Rt |
| Range | Ra, Rq: 0.05~15um Rz, Rt: 0.1~50um |
| Accuracy | +/- 10% |
| Resolution (Ra) | 0.01um |
| Probe Type | Piezoelectric |
| Probe Stylus Radius / Angle | 10um/90° |
| Probe Stylus Material | Diamond |
| Measuring Force | 5mN |
| Measuring unit | um/uin |
| Cut off | 0.25/0.8/2.5mm |
| Evaluation length | 1.25mm for cut off 0.25mm 4mm for cut off 0.8mm 5mm for cut off 2.5mm |
| Traverse speed | 0.75mm/s |
| Power | built-in rechargable battery |
| Dimensions (L x W x H) | 106x70x24mm |
