• Small size, light weight, portable, convenient for on-line measurement and can be used to measure large workpieces
• Support 360°measurement, fast test speed, the fastest results in 1 second
• Standard Vickers indentation, small test indentation and low damage to the workpiece
• 100 measurement data sets and 10 calibration data sets can be stored

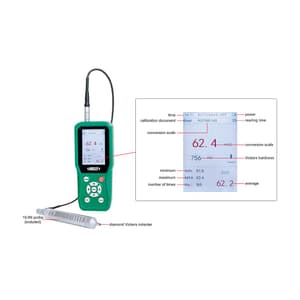

• Large display, directly shows the current measured value, maximum value, minimum value, average value and unit conversion value
• For unspecified conversion tables and unknown materials, multi-point calibration on any hardness scale you can choose to eliminate of systematic errors due to conversion tables
• According to DIN 50159, ASTM A1038 standards
• Convertible Parameters: HRA, HRB, HRC, HBW, HS, MPa
• Measurement Range: 50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa
• Resolution: 1HV, 0.1HRA, 0.1HRB, 0.1HRC, 1HB, 0.1HS, 1MPa
• Calibration Method: One-Point Calibration (Normal Material) / Multi-Point Calibration (Special Material)
• Attention: Hardness Blocks for calibration are optional; Need To Confirm If The Workpieces Are Suitable Before Purchase

Application:

• Hardness measurement of flange edges and gear root stampings, gears and gear grooves with surface hardening of lamina, taper sections
• Hardness measurement of shafts and thin-walled pipes and container
• Hardness measurement of thin plating, wheels, turbine rotors and welded parts
• Measurement of the depth of a certain diameter deep holes, dents of the larger curvature and convex marks, irregular planes
• Covering the majority of hardness measurement of industrial production of ferrous metals, non-ferrous metals and their alloys

What's Included in this Package:

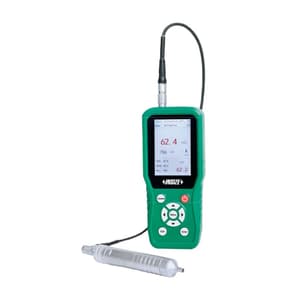

• 1x Ultrasonic Hardness Tester
• 1x 19.6N Manual Probe
• 1x Bluetooth Printer
• 1x Charger
• 1x USB Cable
• 1x Randomized Standard Hardness Block
