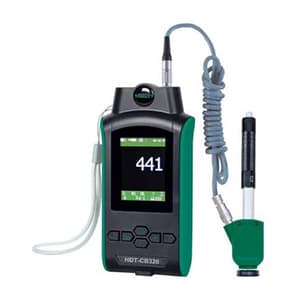

Insize -10°C ~ 45°C Portable Leeb Hardness Tester with wired Probe, HDT-CB320
Roll over image to zoom zoom_in
- Weight: 158 Grams
- Product Type: Hardness Tester
- Accuracy: ±6HLD (When HLD =800)
- Memory: 999 Data
- Power Supply: 2x AA Battery
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹53846.94 (Incl. of all taxes)
₹45633+ ₹8213.94 GST (18%)
MRP ₹70204
SAVE 35%
3 Business Days
1 Set
90248091
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Can use wired probes or wireless probes
- Dual-coil probe for high accuracy
- Universal testing angle, no need to set impact direction
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (ob)
- Dual value display, shows both Leeb and converted hardness
- Large 2.4" LCD display with backlight
- With a magnet on the back, the main unit can be attached on steel surfaces
- According to ASTM A956 and DIN 50156
- Measuring Range: HL 170-960/HRC 1.3-74.7/HRB 1.2-139.7/HB 28-1027/HV 45-1221 HS 4.0-112.1/HRA 1.3-88.5/MPa 118-3315N/mm²
- Applicable Materials: Steel/Cast steel, Nodular cast iron, Copper, Alloy steel, Cast aluminum, Forging steel, Stainless steel, Brass, Rolling steel, Gray pig iron, Bronze
What's Included in this Package:
| Main unit | 1 pc |
| Wired Probe D | 1 pc |
| Wireless Probe D | - |
| Hardness Test Block D | 1 pc |
| Small Support Ring | 1 pc |
| Cleaning Brush | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.HA.00007 |
|---|---|
| Product Type | Hardness Tester |
| Model No | HDT-CB320 |
| Resolution | 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, 1MPa |
| Accuracy | ±6HLD (When HLD =800) |

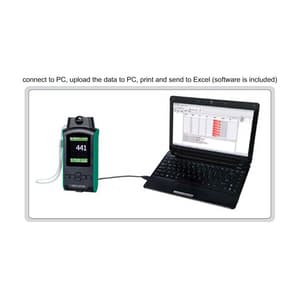

| Output | USB |
| Statistics | Average/Max./Min./S.value |
| Memory | 999 Data |
| Working Environment | -10°C ~ 45°C |
| Power Supply | 2x AA Battery |
| Dimension | 145 x 68 x 28 mm |
