• Continuous measurement, comparative measurement
• Timed measurement, polarization index measurement
• AC and DC voltage measurement

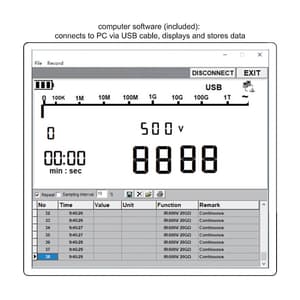

• Data storage, USB interface data transfer
• High voltage output warning, automatic discharge
• Battery level indication
• Backlight display function
• Auto power off function
• Open-circuit voltage: DC voltage 0%~+20%
• Insulation resistance of 100G ohm or more should be measured under 50% RH humidity

Technical Data:

Insulation Resistance	Test Voltage	500V	1000V	2500V	5000V
	Range	0.5M ohm - 20G ohm	1M ohm - 40G ohm	2.5M ohm - 100G ohm	5M ohm - 1000G ohm
	Resolution	0.5M ohm ~ 99.9M ohm: 0.1M ohm 100M ohm ~ 999M ohm: 1M ohm 1G ohm ~ 9.99G ohm: 0.01G ohm 10G ohm ~ 1000G ohm: 0.1G ohm
	Accuracy	0.5M ohm ~ 99.9M ohm: ±(3%+5d) 100M ohm ~ 9.99G ohm: ±(5%+5d) 10G ohm ~ 99.9G ohm: ±(10%+5d) 100G ohm ~ 1000G ohm: ±(20%+5d)
DC Voltage	Range	±(30 - 600)V
	Resolution	1V
	Accuracy	±(2%+3d)
AC Voltage (50/60Hz)	Range	(30 - 600)V
	Resolution	1V
	Accuracy	±(2%+3d)

What's Included In This Package:

• 1x Insulation Resistance Tester
• 3x Alligator Clip Test Lead
• 8x Battery (LR14)
• 1x Power Adapter
• 1x USB Cable

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
