Insize 10 - 600 mm / 0.4 - 24 inch Digital RTJ Ring Groove Caliper with Data Interface, 1179-600
Roll over the image to zoom in
Key Features
- Product Type: Digital Caliper
- Range (mm): 10 - 600 mm
- Range (Inches): 0.4 - 24 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹39,872 (Incl. of all taxes)
₹33,790 + ₹6,082 GST (18%)
MRP was MRP ₹47,592
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data Output
- Non waterproof
- Angle of RTJ ring groove: 23°
- Measure ring grooves of flange
- Button function: on/off, set, zero, mm/inch, data preset
- Optional data output cable: code 7315-22 receiver is needed, 7302-22
Diameters (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

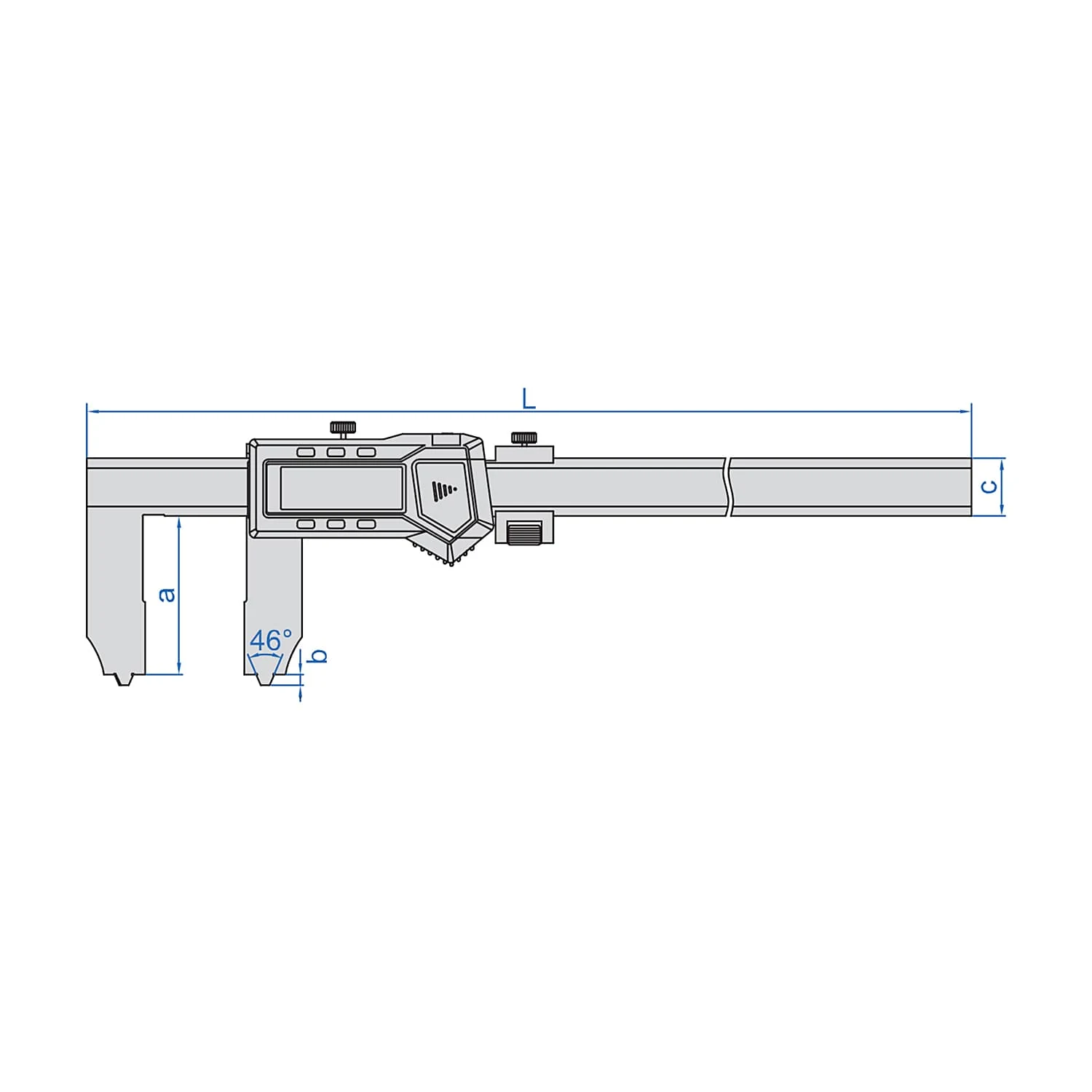

Specifications
| Range (mm) | 10 - 600 mm |
|---|---|
| Range (Inches) | 0.4 - 24 inch |
| Range (Outside Diameter of RTJ Ring Groove) | 25 - 300 mm / 1 - 24 inch |
| Accuracy | ±0.07 mm |
| Resolution | 0.01 mm / 0.0005 inch |
| Power Supply | 1x Battery CR2032 |
| Total Length (mm) | 770 mm |
| Type | B |
| Material | Stainless Steel |
