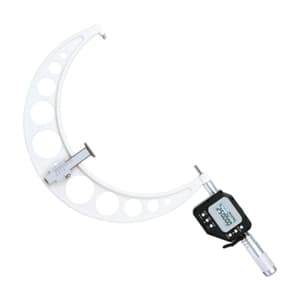

Insize 100 - 125 mm High Precision Digital Outside Micrometer (Built-in Wireless), 3351-150WL
Roll over image to zoom zoom_in
- Product Type: Electronic Micrometer
- Range (mm): 100 - 125 mm
- Range (Inches): 4 - 5 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹56641.18 (Incl. of all taxes)
₹48001+ ₹8640.18 GST (18%)
MRP ₹73848
SAVE 35%
3 Business Days
1 Pcs
90179000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Absolute encoder, the original data remains after power off
- Adjustable resolution: 0.0002mm/0.00001" (when the reading exceeds 100mm, the resolution is automatically switched to 0.001mm), 0.001mm/0.00005"; 0.01mm/0.0005
- One turn of sleeve makes 5mm spindle feed
- Measurement accuracy is not affected by the use of sleeve

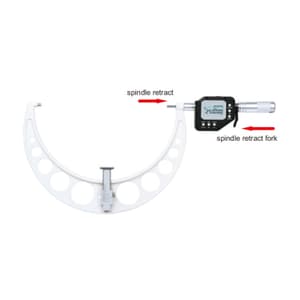

- Press the fork, the spindle retracts 3mm
- Linear ball bearings for ten million times use
- Carbide measuring faces
- Measuring force 5-10N
- Customizable measuring force range 2-12N (Attention: small measuring force will reduce the dustproof and waterproof level)

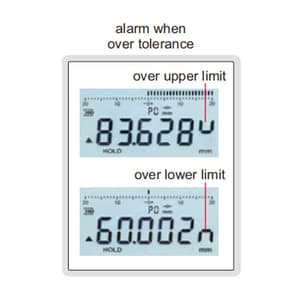

- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch, adjust resolution
- Supplied with gage blocks for zero setting
- Power: Rechargeable battery, for 24 hours continuous working
- Optional accessory: Wireless receiver (keyboard format, connect up to 15 digital indicators), code 2134-R1 / Wireless receiver (serial port format, connect up to 15 digital indicators). code 2134-R2
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.EL.00091 |
|---|---|
| Product Type | Electronic Micrometer |
| Model No | 3351-150WL |
| Range (mm) | 100 - 125 mm |
| Range (Inches) | 4 - 5 inch |

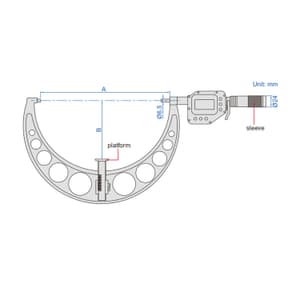

| A (mm) | 128 mm |
| B (mm) | 62.5 mm |
| Accuracy | 3µm |
| Repeatability | 1µm |
| Measuring Faces (µm) | 0.5µm (Flatness) / 2µm (Parallelism) |
