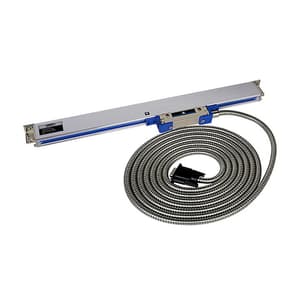

Insize 100 mm Effective Length Linear Scale (TTL Signal), ISL-A1-100
Roll over image to zoom zoom_in
- Product Type: Linear Scales
- Effective Length (mm): 100 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹12823.06 (Incl. of all taxes)
₹10867+ ₹1956.06 GST (18%)
MRP ₹15306
SAVE 29%
7 Business Days
1 Set
90314900
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- IP54 Waterproof
- Optical TTL (Through-The-Lens) detection.
- These optical TTL linear scales use an transistor logic to transmit and record high-resolution distance measurements.
- They are the most accurate type of encoder and are paired with ISL-DR2/DR3 and ISL-LCD7 (digital readout)
Package Content:
- 1x Linear Scale
- 1x 'L' shape support
- 1x Anti-dust cover
- 1x Plain base (for L>1500 mm)
- 1 Package x Mounting accessories
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.LA.LI.00048 |
|---|---|
| Product Type | Linear Scales |
| Model No | ISL-A1-100 |
| Effective Length (mm) | 100 mm |

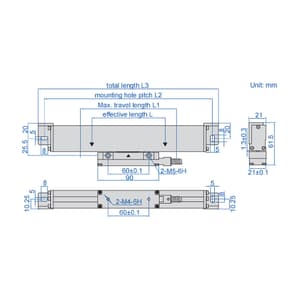

| L1 (mm) | L+30 mm (L<900) / L+50 mm (L>900) |
| L2 (mm) | L+132 mm (L<900) / L+152 mm (L>900) |
| L3 (mm) | L+148 mm (L<900) / L+168 mm (L>900) |
| Resolution | 1µm |
| Max. Response Speed | 50m/mm |
| Scale grating pitch | 20µm |
| Scale reference point pitch | 50 mm |
| Accuracy | ±(5+5L/1000)µm (L is the effective length in mm) |
| Cable Length | 3.5m (L: 50 - 950 mm) / 5m (L: 1000 - 1500 mm) / 10m (L: 1600 - 3200 mm) |
| Output Signal | TTL |
| Socket | 9PD |
| Power Supply | 5±0.5V |
