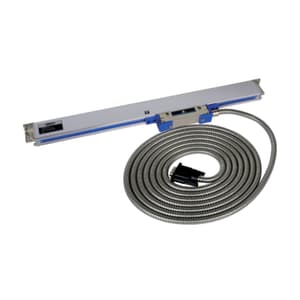

Insize 300 mm Effective Length Linear Scale, ISL-B5-300
Roll over image to zoom zoom_in
- Product Type: Linear Scales
- Effective Length (mm): 300 mm
- Resolution: 5µm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹9159.16 (Incl. of all taxes)
₹7762+ ₹1397.16 GST (18%)
MRP ₹10933
SAVE 29%
3 Business Days
1 Set
90314900
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- IP54 Waterproof
- Optical TTL (Through-The-Lens) detection.
- These optical TTL linear scales use an transistor logic to transmit and record high-resolution distance measurements.
- They are the most accurate type of encoder and are paired with ISL-DR2/DR3 and ISL-LCD7 (digital readout)

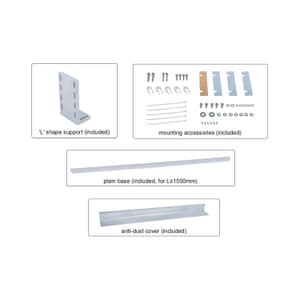

Package Content:
- 1x Linear Scale
- 1x "L" Shape Support
- 1x Anti-dust Cover
- 1 Package x Mounting Accessories
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.LA.LI.00002 |
|---|---|
| Product Type | Linear Scales |
| Model No | ISL-B5-300 |
| Effective Length (mm) | 300 mm |

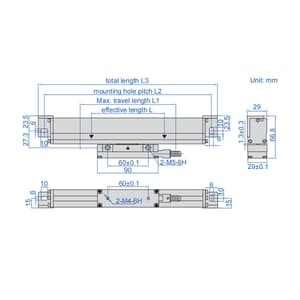

| L1 (mm) | L+30 mm |
| L2 (mm) | L+136 mm |
| L3 (mm) | L+154 mm |
| Resolution | 5µm |
| Max. response Speed | 60m/min |
| Scale Grating Pitch | 20µm |
| Scale Reference Point pitch (mm) | 50 mm |
| Accuracy | ±(5+5L/1000)µm (L is the Effective Length in mm) |
| Cable Length (mm) | 3.5 mm |
| Output Signal | TTL |
| Socket | 9PD |
| Power Supply | 5±0.5V |
