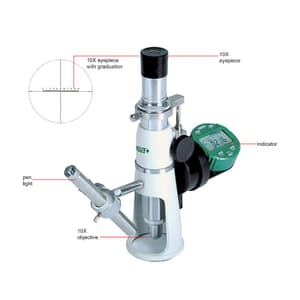

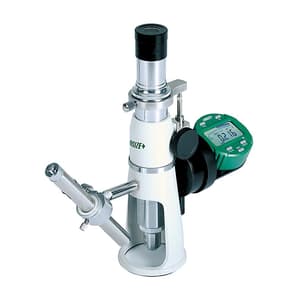

Insize 100X Digital Depth Measuring Microscope, ISM-PM110
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 850 g
- Total Magnification: 100X
- Eyepiece: 10X with Graduation
- Objective: 10X (Numerical aperture 0.25)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹44,381 (Incl. of all taxes)
₹37,611 + ₹6,770 GST (18%)
MRP was MRP ₹52,237
Save 28%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

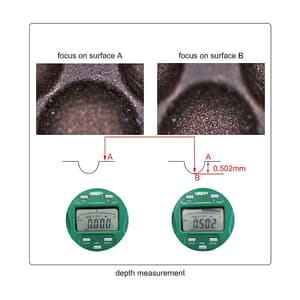

- Measuring the depth of scratches, chips, burrs, pitting, chattering, scribe lines, engraving, markings, etc.
- Built-in light source for on-the-spot detection
- Equipped with a display indicator that clearly shows the data
Package Content:
- 1x Microscope
- 1x Pen light
- 2x Battery (AAA)
- 1x Digital indicator
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Total Magnification | 100X |
|---|---|
| Eyepiece | 10X with Graduation |
| Objective | 10X (Numerical aperture 0.25) |
| Working Distance | 7 mm |
| Accuracy | ±0.02 mm |
| Viewing Field | Ø1.8 mm |
| Focus Range | 30 mm |
| Depth measurement distance | 7 mm |
| Illumination | LED light |
| Diameter of Base | Ø63 mm |
| Height (mm) | 210 mm |
