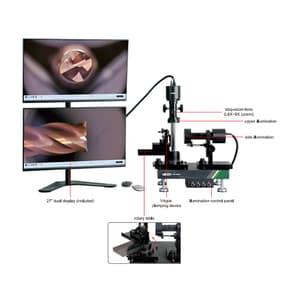

Insize 23X ~ 230X Dual-Display Cutting Tools Microscope, ISM-CT600
Roll over the image to zoom in
Key Features
- Product Type: Digital Microscope
- Weight: 43 kg
- Cutting Tools Range: Ø3 - 20 mm, Length 20 - 60mm
- Resolution: 3840 x 2160 Pixel
- View Field: 1.4x2.5 - 14x25 mm
- Magnification: 23X - 230X (On 27" monitor)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,89,862 (Incl. of all taxes)
₹4,15,137 + ₹74,725 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 27" dual display, 4K high-definition image

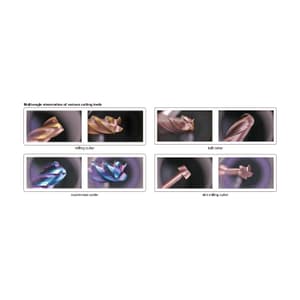

- With a rotary slide table for multi-angle tool observation
- Display cross hairs
- Measure point, line, circle, parallel lines, angle, etc
- Take pictures and videos, saved to USB flash disk
Package Content:
- 1x Microscope
- 2x Display
- 2x Mouse
- 1x Glass calibration plate
- 2x HDMI cable
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Cutting Tools Range | Ø3 - 20 mm, Length 20 - 60mm |
|---|---|
| Lens | Step-zoom lens (0.6X - 6X) |
| Resolution | 3840 x 2160 Pixel |
| View Field | 1.4x2.5 - 14x25 mm |
| Focus Distance | 80 mm |
| Magnification | 23X - 230X (On 27" monitor) |
| Measuring Accuracy | ±0.02 mm |
| Output | HDMI/USB |
| Rotary Table | Sliding distance: 90 mm, Rotation range: 0 - 220° |
| Power Supply | 100 - 240V, 50/60Hz |
| Dimensions (L x W x H) | 1150 x 400 x 880 mm |
