• IP65 Waterproof
• Data Output

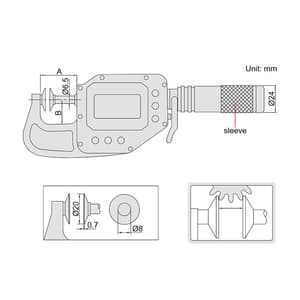

• Measure root tangent length of gear
• Absolute encoder, the original data remains after power off
• Adjustable resolution: 0.0002mm/0.00001"; 0.001mm/0.00005"; 0.01mm/0.0005"
• One turn of sleeve makes 5mm spindle feed, Press the fork, the spindle retracts 3mm
• Measurement accuracy is not affected by the use of sleeve
• Linear ball bearings for ten million times use
• Carbide spindle and anvil
• Measuring force 7-10N
• Customizable measuring force range 2-12N
• Attention: small measuring force will reduce the dustproof and waterproof level
• Attention: Rechargeable Battery, For 24 Hours Continous Working

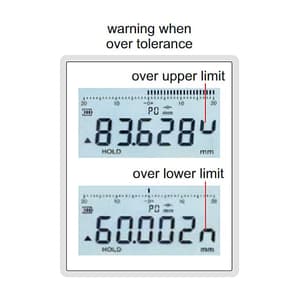

• Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch, adjust resolution
• Supplied with gage blocks for zero setting
• Power: rechargeable battery, for 24 hours continuous working
• Supplied with manufacturer inspection certificate

Build-in Wireless:

• Optional accessory: Wireless receiver (keyboard format, connect up to 15 digital indicators), code 2134-R1 / Wireless receiver (serial port format, connect up to 15 digital indicators). code 2134-R2
