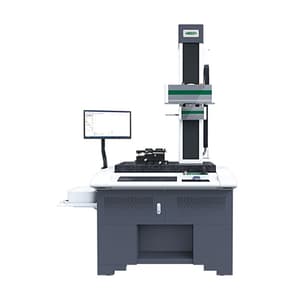

Insize 150 mm Roughness & Profile Measuring Machine (One Probe Type), SPM-5000
Roll over the image to zoom in
Key Features
- Product Type: Roughness Tester
- Weight: 500 g
- X axis measuring range: 150 mm
- Z axis measuring range: ±10 mm
- Travel of Z axis: 420 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹47,57,338 (Incl. of all taxes)
₹40,31,642 + ₹7,25,696 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Roughness, waviness, and profile analysis can be achieved with just one measurement
- Can measure all roughness and waviness parameters
- Can be used for automatic measurement system
- Air flotation and shockproof system to reduce measurement deviation
- Free to edit measurement reports
Technical Data of Roughness Measurement:
| Roughness parameters | Ra, Ramax, Ramin, Rasd, Rp, Rpmax, Rpmin, Rpsd, Rv, Rvmax, Rvmin, Rvsd, RZ, Rzmax, Rzmin, Rzsd, R3z, Rc, Rcmax, Rcmin, Rcsd, Rt, Rq, Rqmax, Rqmin, Rqsd, Rsk, Rskmax, Rskmin, Rsksd, Rku, Rkumax, Rkumin, Rkusd, Rsm, Rsmmax, Rsmmin, Rsmsd, Rs, RΔa, RΔamax, RΔamin, RΔasd, RΔq, RΔqmax, RΔqmin, RΔqsd, Rk, Rpk, Rvk, Mr1, Mr2, Rλa, Rλamax, Rλamin, Rλasd, Rλq, Rλqmax, Rλqmin, Rλqsd, Rδc, Rpc, Rmr |
| Waviness parameters | Wa, Wamax, Wamin, Wasd, Wsa, Wca, Wa08, Wc, Wcmax, Wcmin, Wcsd, Wt, Wz, Wzmax, Wzmin, Wzsd, Wp, Wpmax, Wpmin, Wpsd, wv, Wvmax, Wvmin, Wvsd, Wq, Wqmax, Wqmin, Wqsd, Wsm, Wsmmax, Wsmmin, Wsmsd, Wsk, Wskmax, Wskmin, Wsksd, Wku, Wkumax, Wkumin, Wkusd, WΔq, WΔqmax, WΔqmin, WΔqsd, Wδc, Wmr |
| Original profile parameters | Pa, Pt, Pp, Pc, Pv, Pz, Pq, Psm, Psk, Pku, RzJ, Rpq, Rvq, Rmq, Prnr, PΔq, Avh, Hmax, Hmin, Area, Pδc, Tilta |
| Motif parameters | Ncrx, R, Rx, AR, Nr, Cpm, Sr, Sar, W, Wx, Aw, Wte, Nw, Sw, Saw |
| Measuring range | ±10 mm |
| Resolution | 0.0012µm |
| Linear accuracy | < ±(6nm+2.5%) |
| Probe radius/angle | 5µm / 90° |
| Cut off | 0.025/0.08/0.25/0.8/2.5/8 mm |
| Number of cut-offs | 2 - 7 |
| Measuring unit | µm |
| Measuring speed | (0.1 - 2) mm/s |
Standard Delivery:

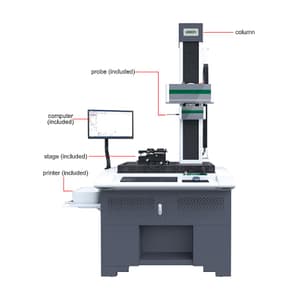

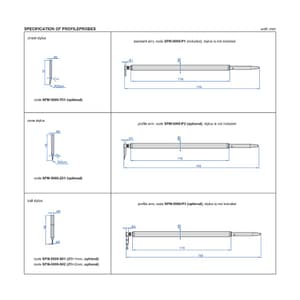

| Main unit (including workbench, controller, driver, sensor) | 1 pc |
| Calibration block | 1 Set |
| Probe arm | 1 pc |
| Stylus | 1 pc |

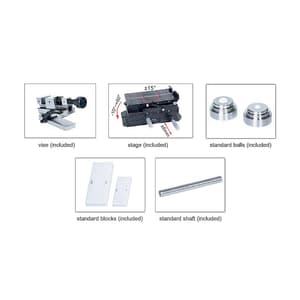

| Air flotation and shockproof system | 1 Set |
| Stage | 1 Set |
| Vise | 1 Set |
| Computer | 1 pc |
| Software | 1 Set |
| Printer | 1 pc |
| Installation tools | 1 Set |
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| X axis measuring range | 150 mm |
|---|---|
| X axis resolution | 0.0012μm |
| X axis traverse speed | (0.05 - 50) mm/s |
| X axis linear accuracy | ±(0.8+|0.015L|)μm, L is measuring length in mm |
| Z axis measuring range | ±10 mm |
| Z axis resolution | 0.0012μm |
| Z axis traverse speed | (0.2 - 40) mm/s |
| Z axis linear accuracy | ±(0.5+|0.02H|)μm, H is measuring height in mm |
| Angular measuring accuracy | ±1 inch |
| Arc Measuring Accuracy | ±(1+R/12)μm, R is 2 - 10 mm standard ball |
| Straightness | 0.3μm / 100 mm |
| Measuring Unit | mm, inch |
| Travel of Z axis | 420 mm |
| Power Supply | 220±10%V, 50Hz |
| Dimensions (L x W x H) | 1700 x 820 x 1900 mm |
