Insize 15kN /1.5T Compression Sensor (S-Type Tensile), 8650-15K
Roll over image to zoom zoom_in
- Product Type: Compression Sensor
- Max. Range: 15kN / 1.5T
- Output Sensitivity: 2.0±10%mV/V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹3941.2 (Incl. of all taxes)
₹3340+ ₹601.2 GST (18%)
MRP ₹5138
SAVE 35%
3 Business Days
1 Pcs
90268090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel
- Application fields: universal material testing machines, hopper scales, hook scales, packaging scales, belt scales, plug-in force testers and other tension and pressure testing instruments as well as automation equipments

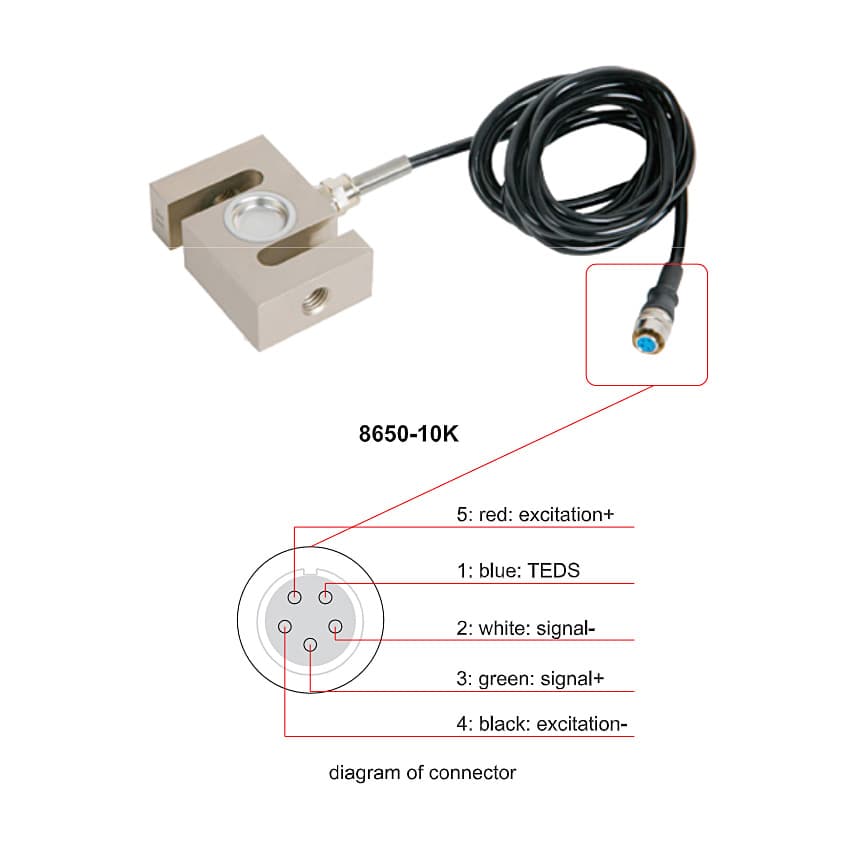

- Cable Specification: Ø5mm: <1T, 2m; >1T, 5m
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.CO.00035 |
|---|---|
| Product Type | Compression Sensor |
| Model No | 8650-15K |
| Max. Range | 15kN / 1.5T |

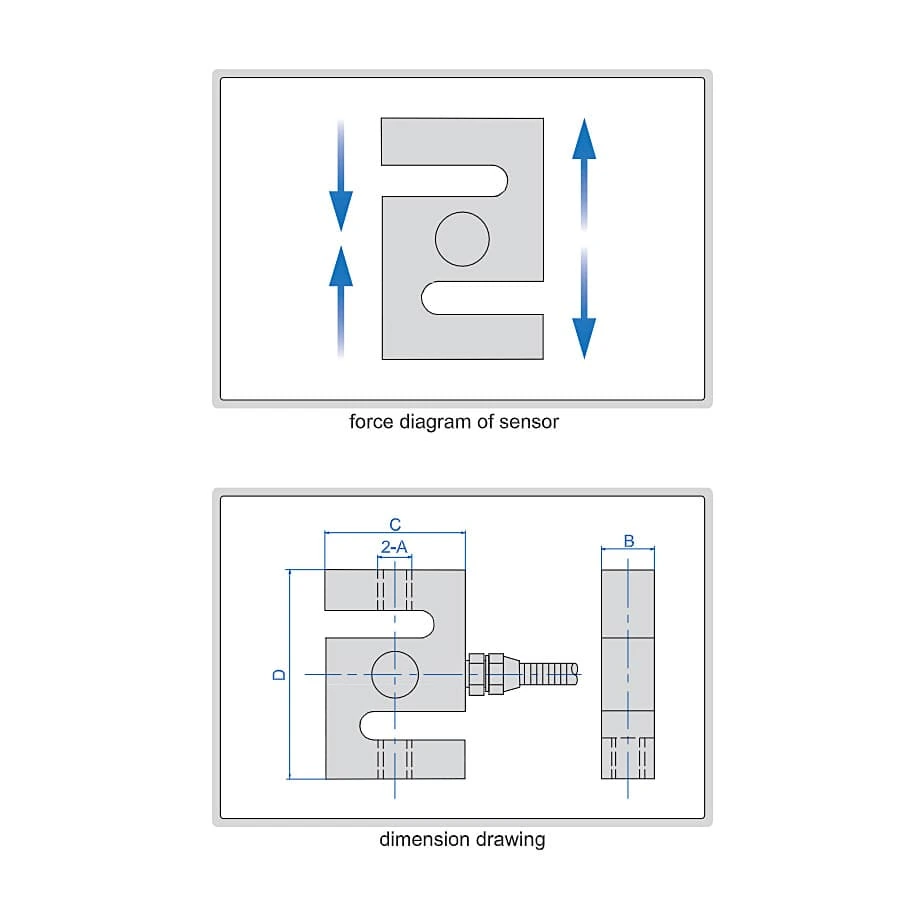

| A (mm) | M12 x 1.75 mm |
| B (mm) | 25.4 mm |
| C (mm) | 50.8 mm |
| D (mm) | 76.2 mm |
| Output Sensitivity | 2.0±10%mV/V |
| Zero Output | ±1% F.S. |
| Non-Linearity | ±0.03% F.S. |
| Hysteresis | ±0.03% F.S. |
| Repeatability | ±0.03% F.S. |
| Creep (30 MInutes) | ±0.03% F.S. |
| Temperature Sensitivity Drift | ±0.03% F.S. / 10°C |
| Zero Temperature Drift | ±0.05% F.S. / 10°C |
| Response Frequency | 10kHz |
| Electrical Impedance | 350 ohm |
| Insulation Impedance | >5000M ohm / 100VDC |
| Operating Voltage | 5 - 15V |
| Working Temperature | -20 ~ 80°C |
| Safety Overload | 150% |
| Extreme Overload | 200% |
| Extreme Cable Pulling Force | 10Kg |
| Material | Alloy Steel |
