Insize 2000N / 200Kg Compact Type Compression Sensor (S-Type Tensile), 8651-2000
Roll over image to zoom zoom_in
- Product Type: Compression Sensor
- Max. Range (mm): 2000N / 200Kg
- Output Sensitivity: 1.0 - 2.0m V/V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹7975.62 (Incl. of all taxes)
₹6759+ ₹1216.62 GST (18%)
MRP ₹9795
SAVE 31%
3 Business Days
1 Pcs
90268090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

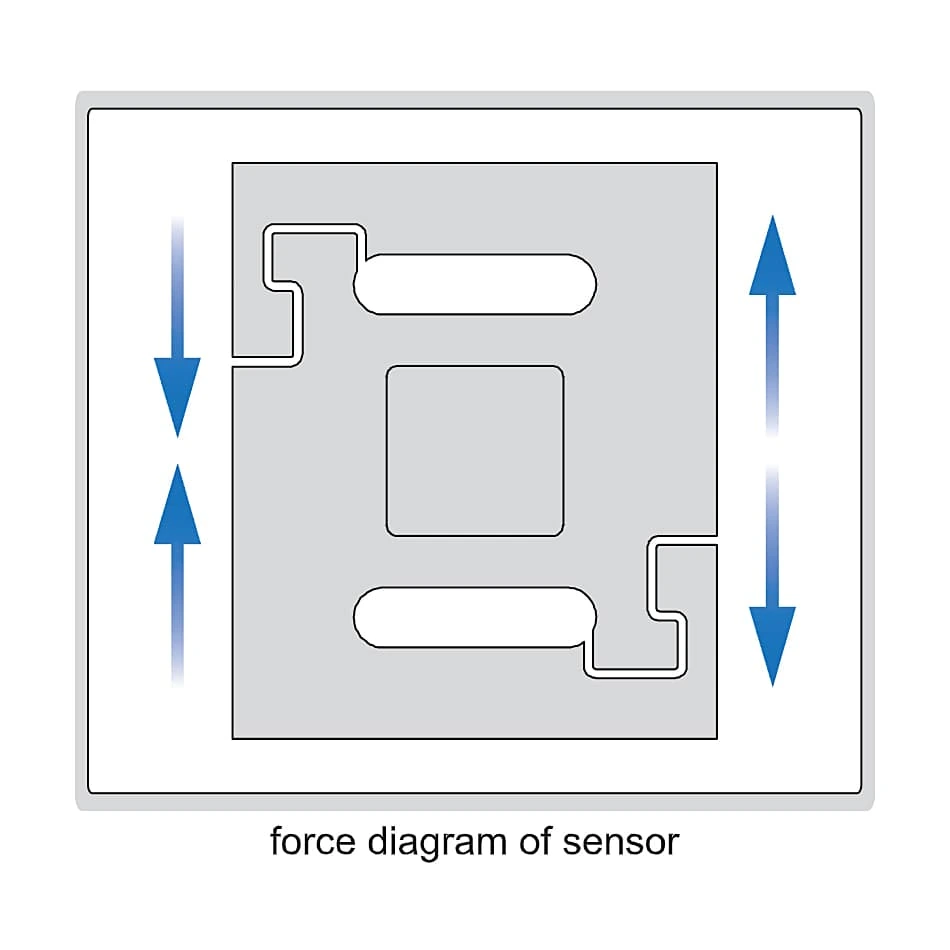

- Bi-directional tension and compression, small size, high comprehensive precision, good long-term stability, nickel plating on the surface of stainless steel
- Application fields: automotive press-fit, automatic assembly, 3C industry test, hand grip force for robot, keyboard feel test, etc.
- If One Indicator is Used for Multiple Sensors, Customization is Required
Dimension Measurement:
 |
|
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.CO.00052 |
|---|---|
| Product Type | Compression Sensor |
| Model No | 8651-2000 |
| Max. Range (mm) | 2000N / 200Kg |
| Output Sensitivity | 1.0 - 2.0m V/V |
| Zero Output | ±2%F.S. |
| Accuracy | 0.15%F.S. |
| Response Frequency | 10kHz |
| Electrical Impendance | 350 Ohm |
| Insulation Impedance | >5000MOhm / 100VDC |
| Operating Voltage | 5 - 15V |
| Working Temperature | -15 ~ 65°C |
| Safety Overload | 120% |
| Extreme Overload | 150% |

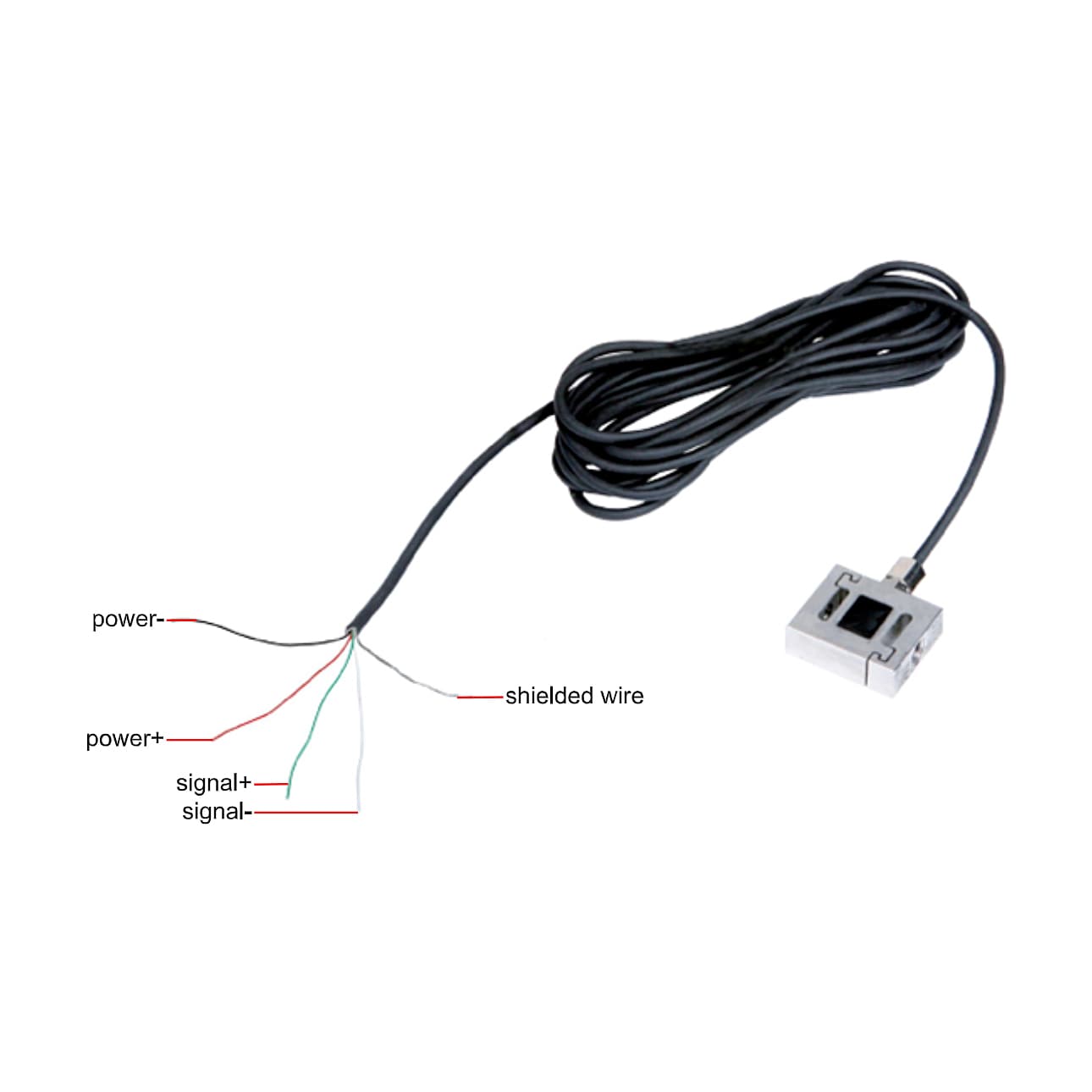

| Cable Specification | <1000N: Ø2mm x 2m / >1000N: Ø3mm x 2m |
| Extreme Cable Pulling Force | 5Kg |
