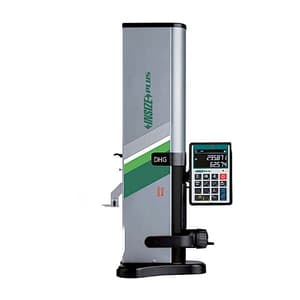

Insize 1D Manual Height Gauge (Without Air Cushion), DHG-C420
Roll over image to zoom zoom_in
- Product Type: Height Gauge
- Type of Product: Digimatic Height Gauge
- Measuring Range: 0~406 mm
- Working Temperature: 10°C~40°C
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹368842.04 (Incl. of all taxes)
₹312578+ ₹56264.04 GST (18%)
MRP ₹351014
SAVE 10.95%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Set 9 reference points
- The probe can be moved quickly by hand

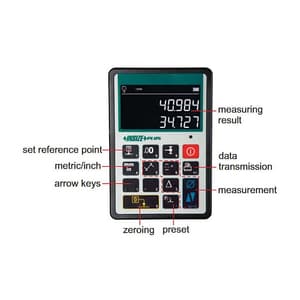

- Touch buttons
- LED display with backlight
- Built-in rechargeable battery, 40 hours working I
- Measurement results can be sent to Excel/Word, equivalent to keyboard input.

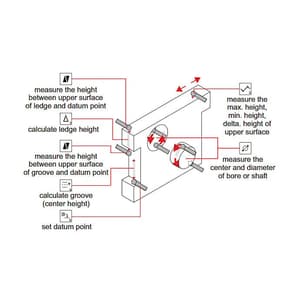

Function:
- Measure the height between the measuring point and datum point
- Calculate the difference between two measured values
- Calculate the average value of two measured values
- Maximum, minimum, TIR measurement
- Measure diameter and center of shafts.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.HE.00062 |
|---|---|
| Product Type | Height Gauge |
| Model No | DHG-C420 |
| Type of Product | Digimatic Height Gauge |
| Measuring Range | 0~406 mm |
| Accuracy (At 20°C) | 8µm |
| Repeatability | 3µm |
| Resolution | 0.1 mm, 0.01 mm, 0.001 mm (Selectable) |
| Data Output | USB |
| Measuring Force | 0.75N, 1N,1.25N,1.5N (Selectable) |
| Power Supply | Rechargeable Battery |
| Working Temperature | 10°C~40°C |
