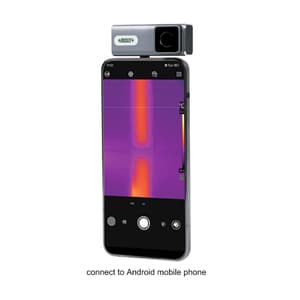

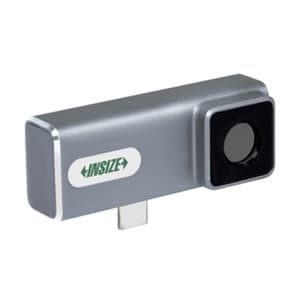

Insize -20°C ~ 150°C Infrared Thermal Imaging Camera for Mobile Phone, 0236-MC150

Shop all Insize

SKU: ME.TE.TH.00083

Model: 0236-MC150

Roll over image to zoom zoom_in
  1. Insize -20°C ~ 150°C Infrared Thermal Imaging Camera for Mobile Phone, 0236-MC150
  2. Insize -20°C ~ 150°C Infrared Thermal Imaging Camera for Mobile Phone, 0236-MC150

  • Weight: 40 Grams
  • Product Type: Thermal Imaging Camera
  • Measurement Range: -20°C ~ 150°C
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

38607.24 (Incl. of all taxes)

32718+ ₹5889.24 GST (18%)

MRP ₹48115

SAVE 32%



3 Business Days

1 Pcs

90275090

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Suitable for intelligent farming, electrical industry, mechanical industry, construction, heating ventilation and air conditioning etc.
  • Clearly identify people and animals hundreds of meters away in the darkness field
  • Automatically focus on subjects by touching the screen to quickly produce clear thermal images
  • Up to 3 spots, 1 line and 2 areas of subjects to be analyzed
  • Mobile App is included (only for Android system)


Technical Data:

Infrared Detectordetector typeunrefrigerated vanadium oxide, 7.5µm-14µm
infrared resolution256x192 Pixel @12µm
infrared frame rate25Hz
Lensfocal length7 mm
field of view25°
focusing modeAutomatic/electric
detection range100m
Functionphoto and videoavailable
color palettes9: white hot, fulgurite, iron red, hot iron, medical, north pole, rainbow 1, rainbow 2, black hot; 1 customized
instant sharingimages & videos


Package Content:

  • 1x Main Unit
  • 1x USB Flash Disk


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.TE.TH.00083
Product TypeThermal Imaging Camera
Model No0236-MC150
Measurement Range -20°C ~ 150°C
Accuracy ±2°C or ±2%, Whichever is greater
Analyzed Target Spot, Line & Area
Voltage 4.5 - 5.5V
Power 500mW
Operating Temperature 0 - 45°C
Protection IP43, 1m Drop Test
Certification CE, RoHS
External Interface USB Type-C
Dimensions (L x W x H) 59 x 20 x 24 mm
