• Data Output & IP54 Waterproof
• Suitable for electric power, construction, mechanical industry, etc.
• Equipped with 96x96 infrared detector, supporting super resolution enhancement to 192x192
• -20°C ~ 550°C temperature measurement range, automatic switch
• Wide imaging angle, discernible details and defect visualization
• Software is included: support file management, thermal image analysis, real-time transmission, report editing, etc.

Technical Data:

Infrared Image	Detector Type	unrefrigerated detector, 7.5pm-14pm
	Infrared Resolution	96 x 96 Pixel
	super resolution	Upgrade to 192 x 192 Pixel
	thermal sensitivity/NETD	<50mK
	infrared frame rate	25Hz
	spatial resolution/IFOV	8.89mrad
	Min. Object Distance	0.1m
	field of view	50° x 50°
	Focal Length	1.35 mm
	focusing mode	Focus Free

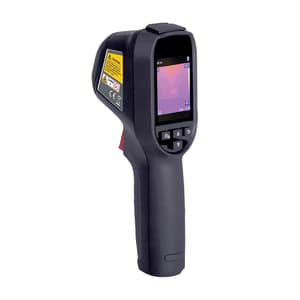

Image Display	Display Screen	2.4 inch LCD, 320 x 240 Pixel
	visual camera	640 x 480 Pixel
	image mode	Infrared, Visual, Fusion
	Color Pallettes	White hot, Black hot, Rainbow, Iron red, Red hot, Fusion, Blue yellow

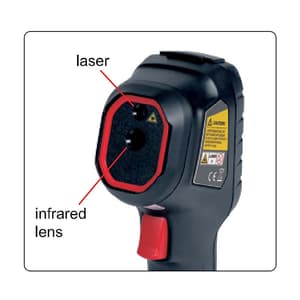

Function	Laser	Class 2, Wavelength 650nm, Power <1mW
	Storage	Built-in 4G
	Image Storage	JPG (with Temperature Information)
	Video Storage	MP4 (without Temperature Information)
	Casting Screen	Available
	External Interface	TYPE-C, 1/4" tripod mounting
	Battery Type	Rechargeable lithium-ion battery, approximately 8 hours on a full charge

Standard Delivery:

• 1x Main Unit
• 1x Type-C Data Cable
