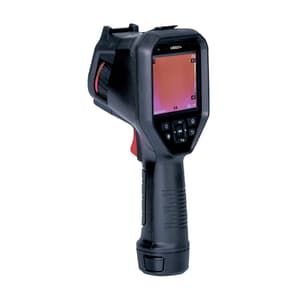

Insize -20°C ~ 650°C Infrared Thermal Imaging Camera (Manual Focus Type), 0238-HT192
Roll over image to zoom zoom_in
- Weight: 660 Grams
- Product Type: Thermal Imaging Camera
- Measurement Range: support auto-switching: -20°C~150°C, 100°C~650°C
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹138919.04 (Incl. of all taxes)
₹117728+ ₹21191.04 GST (18%)
MRP ₹165814
SAVE 29%
7 Business Days
1 Pcs
90275090
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Data Output & IP54 Waterproof
- Suitable for electric power, construction, electrical industry, petrochemical industry, mechanical industry, scientific research, etc.
- Equipped with 192x144 infrared detector, supporting super resolution enhancement to 384x288, delivering uniform imaging with discernible details and sharp clarity
- -200C—6500C temperature measurement range, automatic switch
- Support point, line, rectangle and circle measurement tools, with flexible regional emissivity adjustment capabilities
- Software is included: support file management, thermal image analysis, video analysis, real-time transmission, report editing, etc.
- Mobile APP is included: support real-time data and video transmission
Technical Data:
| Infrared Image | Detector Type | unrefrigerated detector, 7.5pm-14pm |
| Infrared Resolution | 192 x 144 Pixel | |
| super resolution | Upgrade to 384 x 288 Pixel | |
| thermal sensitivity/NETD | <50mK | |
| infrared frame rate | 25Hz | |
| spatial resolution/IFOV | 1.74mrad | |
| aperture value | F1.0 | |
| field of view | 19° x 14° | |
| Focal Length | 6.9 mm | |

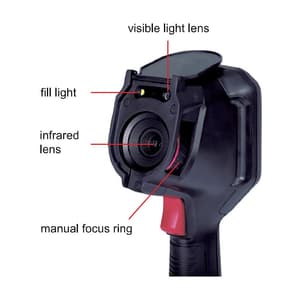

| focusing mode | Manual focus | |
| digital zoom | 1.0X - 8.0X | |
| Image Display | display screen | 3.5" touchscreen LCD, 640x480 pixel |
| visual camera | 3264 x 2448 Pixel | |
| image mode | infrared, visual, fusion, pip, blending | |
| color palettes | white hot, black hot, rainbow, iron Red, red hot, fusion, rain, blue red | |
| color highlight | above, below, interval, insulation, condensation | |
| Function | Laser | Indication: class 2, Wavelength: 650nm, Power: <1mW |
| storage | 32GB Micro SD card | |
| image storage | JPG (with temperature information) | |
| video storage | MP4 (without temperature information) and HRV (with temperature information) | |
| Wifi | Available | |
| bluetooth | Available | |
| external interface | TYPE-C, SD card slot, 1/4" tripod mounting | |
| battery type | interchangeable and rechargeable lithium-ion battery | |
| charging time | approximate 6 hours fully charged |
Standard Delivery:
- 1x Main Unit
- 1x Type-C Data Cable
- 1x SD Card
- 2x Li-ion Batteries
- 1x Desktop Charger
- 1x Power Adapter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.TE.TH.00109 |
|---|---|
| Product Type | Thermal Imaging Camera |
| Model No | 0238-HT192 |
| Measurement Range | support auto-switching: -20°C~150°C, 100°C~650°C |
| Accuracy | ±2°C or ±2%, whichever is greater |
| Measurement Tools | center spot, hot spot, cold spot, user-definable: delta T, 10 spots, 5 rectangles, 5 circle & 1 line |
| Operating Environment | -10°C ~ 50°C, <95%RH |
| Protection | IP54, 2m Drop Test |
| Dimensions (mm) | 100 x 104 x 244 mm |
