Insize -20 ~ 45°C Air Gauge Display with Data Output (Basic Type), 9416-2
Roll over image to zoom zoom_in
- Weight: 3 Kg
- Product Type: Air Gauge
- LED Height: 254 mm
- Operation Temperature: -20 ~ 45°C
- Power Supply: 220V, 50Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹86491.64 (Incl. of all taxes)
₹73298+ ₹13193.64 GST (18%)
MRP ₹106229
SAVE 31%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Can store 9 measuring programs, and the programs can be switched quickly
- Data storage function, 99 groups data can be stored
Indication Range, Resolution & Accuracy:
| Indication Range | Resolution | Accuracy | |
| LED | Display | ||
| 10µm | 0.1µm | 0.1µm | 0.2µm |
| 20µm | 0.2µm | 0.1µm | 0.4µm |
| 50µm | 0.5µm | 0.5µm | 1um |
| 100um | 1µm | 0.5µm | 2um |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.AI.00004 |
|---|---|
| Product Type | Air Gauge |
| Model No | 9416-2 |

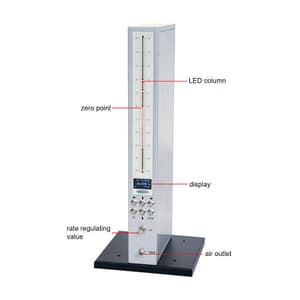

| LED Quantity | 101 Pcs |
| LED Colour | red, orange, green |
| LED Height | 254 mm |
| Unit | mm, µm |
| Air Supply | Dry & Clean, 0.4~0.8MPa |
| Operation Temperature | -20 ~ 45°C |
| Power Supply | 220V, 50Hz |

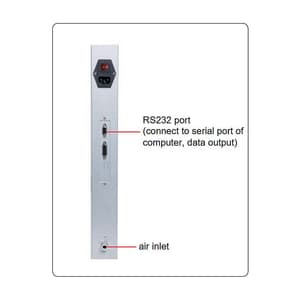

| Data Interface | RS232 |

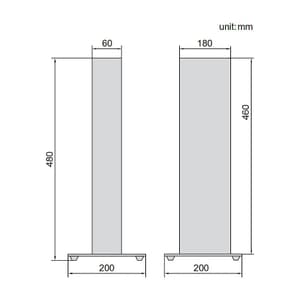

| Dimensions (L x W x H) | 200 x 200 x 480 mm |
