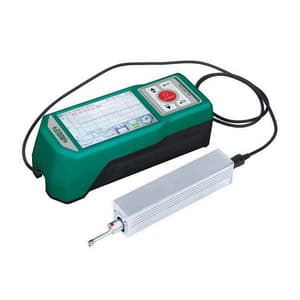

Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300

Shop all Insize

SKU: ME.DI.RO.00003

Model: ISR-C300

Roll over image to zoom zoom_in
  1. Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300
  2. Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300
  3. Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300
  4. Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300
  5. Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300
  6. Insize 320 µm Range Roughness Tester (Separable Type), ISR-C300
Video
Visit Insize Store keyboard_double_arrow_right
  • Weight: 400 Grams
  • Product Type: Roughness Tester
  • Range X axis: 17.5 mm
  • Accuracy: +/- 10%
  • Resolution (Ra): 0.001um
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹115051.18 (Incl. of all taxes)

₹97501+ ₹17550.18 GST (18%)

MRP ₹162501

SAVE 40%

3 Business Days

1 Pcs

90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

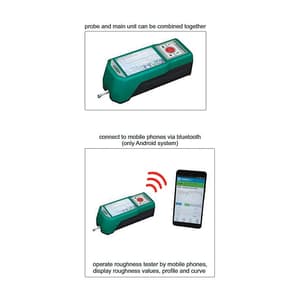

  • Roughness tester can be operated by mobile phone (only android system) or computer

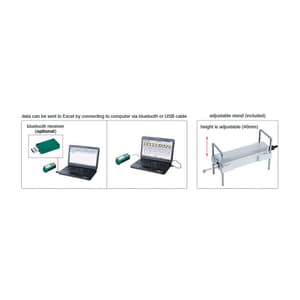

  • Data can be output to Excel by connecting with computer via Bluetooth or USB cable
  • Support Bluetooth printer
  • 22 roughness parameters
  • Meet ISO, DIN, ANSI, JIS standards
  • Display roughness values, profile, and curve
  • The memory of a maximum of 100 data and waveform
  • Built-in lithium battery, working time more than 50 hours
  • Touch screen
  • Automatic power off
  • Can be operated by computer or mobile phone
  • Touch Screen
  • Bluetooth
  • Data output.


Standard Delivery:

Main unit1 pc
Standard probe1 pc
Calibration block and support1 pc of each
Connecting cable (long and short)1 pc of each

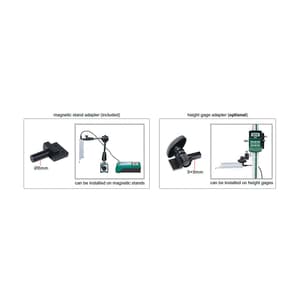

Magnetic stand adapter1 pc
Adjustable stand1 pc
Touch pen1 pc
Software and USB cable1 pc
AC/DC adapter1 pc

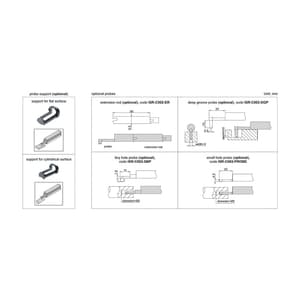

Optional Accessory:

Extension rodISR-C002-ER
Small hole probeISR-C002-PROBE
Tiny hole probeISR-C002-SBP
Deep groove probeISR-C002-DGP
Bluetooth printerISR-C002-PRINTER
Height gage adapterISR-C300-LB1
Bluetooth receiverISR-C300-RECEIVER
Support for flat surfaceISR-C300-COVER1
Support for cylindrical surfaceISR-C300-COVER2

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.DI.RO.00003
Product TypeRoughness Tester
Model NoISR-C300
Parameters Ra, Rz, Rq, Rv, Rp, R3z, R3y, Rt, Rc, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk,Rsk, Mr1, Mr2, Rt, Rmax
Range X axis 17.5 mm
Range Z axis 320um (-160um~160um)
Accuracy +/- 10%
Resolution (Ra) 0.001um
Probe Type Inductive
Probe Stylus Material Diamond
Probe Stylus Radius/Angle 5um/90
Measuring Force 4mN
Measuring unit um/uin
Cut off 0.25/0.8/2.5mm
Number of cut -offs 1~5
Traverse Speed 0.135mm/s, 0.5mm/s, 1mm/s
Memory 100 measurement result
Output USB and bluetooth
Power built-in rechargeable battery

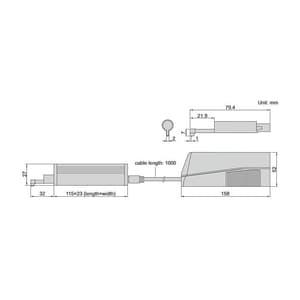

Dimensions (L x W x H) 158x64x52mm
