Insize 360 - 780nm Excellent Type Portable Spectrophotometer, 5707-DS78

Shop all Insize

SKU: ME.DI.SP.00016

Model: 5707-DS78

Roll over image to zoom zoom_in
  1. Insize 360 - 780nm Excellent Type Portable Spectrophotometer, 5707-DS78
  2. Insize 360 - 780nm Excellent Type Portable Spectrophotometer, 5707-DS78
  3. Insize 360 - 780nm Excellent Type Portable Spectrophotometer, 5707-DS78

  • Weight: 600 Grams
  • Product Type: Spectrophotometer
  • Wavelength Range: 360 - 780nm
  • Wavelength Interval: 10nm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

581630.26 (Incl. of all taxes)

492907+ ₹88723.26 GST (18%)

MRP ₹623933

SAVE 21%



15 Business Days

1 Set

90273020

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • The wavelength range of conventional spectrophotometer is 4W-700nm, for more accurate colour measurement, the wavelength of this spectrophotometer is extended to 360—780nm
  • Xenon lamp and LED light system for longer than expected life
  • Four aperture sizes can be switched at will, allowing for easy measurement of even the smallest objects or curved samples
  • Automatic wavelength accuracy correction using reference grade BCRA green
  • No need to manually calibrate, just put it on the calibration base, the instrument will be automatically calibrated according to its own state and environmental factors, to ensure that the instrument is always in a stable state
  • Built-in colour camera to take the view of the positioning, accurate determination of the object to be measured part
  • Single measurement, continuous uninterrupted measurement, averaging possible
  • Optical geometry: D/8 (diffused illumination/80 direction reception); SCI+SCE (specular component included+specular component excluded)
  • Lighting source: full-band balanced LED + xenon lamp
  • Sensor: dual-row high-precision CMOS image sensor
  • Calibration mode: BCRA certifed black and white board energy calibration, green board wavelength accuracy calibration


Technical Data:


Standard Delivery:

  • 1x Spectrophotometer
  • 1x Calibration cavity

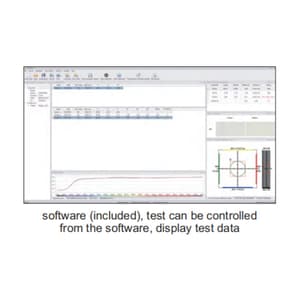

  • 1x Software and USB cable
  • 4x Measuring aperture
  • 1x Power adapter

"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

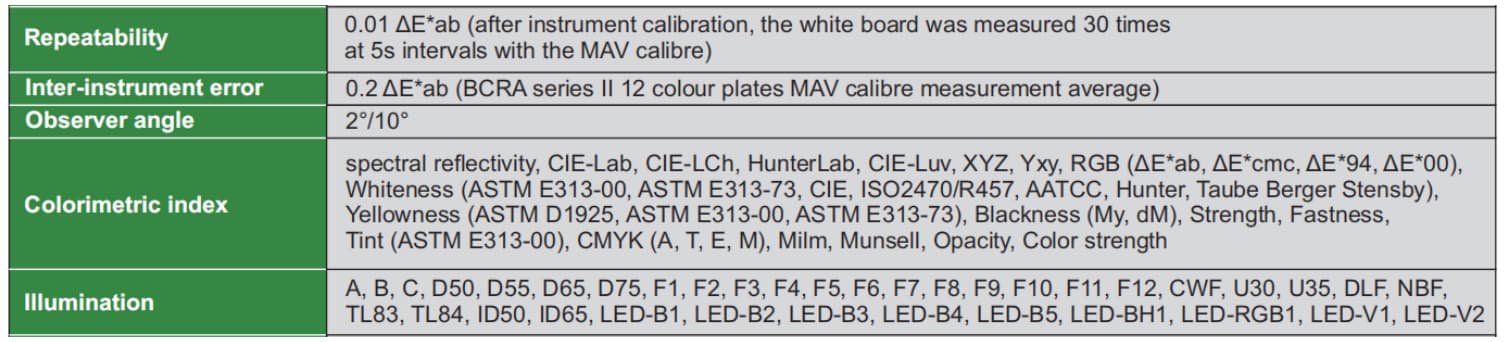

Specifications

SKUME.DI.SP.00016
Product TypeSpectrophotometer
Model No5707-DS78
Wavelength Range 360 - 780nm
Wavelength Interval 10nm
Measurement Range 0 - 200%
Reflectance Resolution 0.01%
Integrating Sphere Size Ø40 mm
Spectrophotometric Mode Grating
Display Accuracy 0.01
Light Source Lifetime 10 Million Times Measurements
Measuring Aperture (Dia.) Ø11, 10, 6 & 3 mm
Measuring time 1s
Data storage Instrument: 10000pcs, App: mass storage
Locating method Color Camera Preview

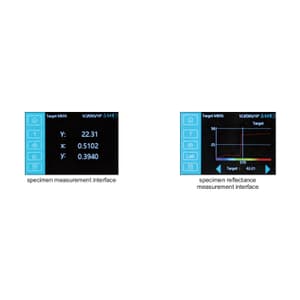

Display screen 3.5-inch full-colour screen, capacitive touch screen
Interface USB, Bluetooth
Calibration Automatic intelligent calibration
Software support Andriod, iOS, Windows
Power Supply Li-ion Battery, 7.2V, 3000mAh, fully charged continuous test 8000 times
Dimensions (mm) 233 x 77 x 93 mm
