• Highly stable UV source for stable fluorescence measurements
• Grating spectroscopy, 7" IPS touch screen
• Two types of light sources: pulsed lamp and LED, can measure SCI and SCE simultaneously and quickly
• 24 standard light sources, more than 40 measurement indicators
• Temperature and humidity compensation function
• Optical geometry: reflect: D/8 (diffused illumination, 8° direction reception), transmission: D/O (diffused illumination, vertical reception), SCI (specular reflective light included), SCE (specular reflective light not included)
• Transmission measurement: width and height unlimited, thickness <50mm
• Measuring aperture: reflect: XLAV Ø25.4mm/Ø30mm, LAV Ø15mm/Ø18mm, MAV Ø8mm/Ø11 mm, SAV Ø3mm/Ø6mm, transmission: Ø17mm/Ø25mm
• Color space: L*a*b, L*C*h, Hunter Lab, Yxy, XYZ

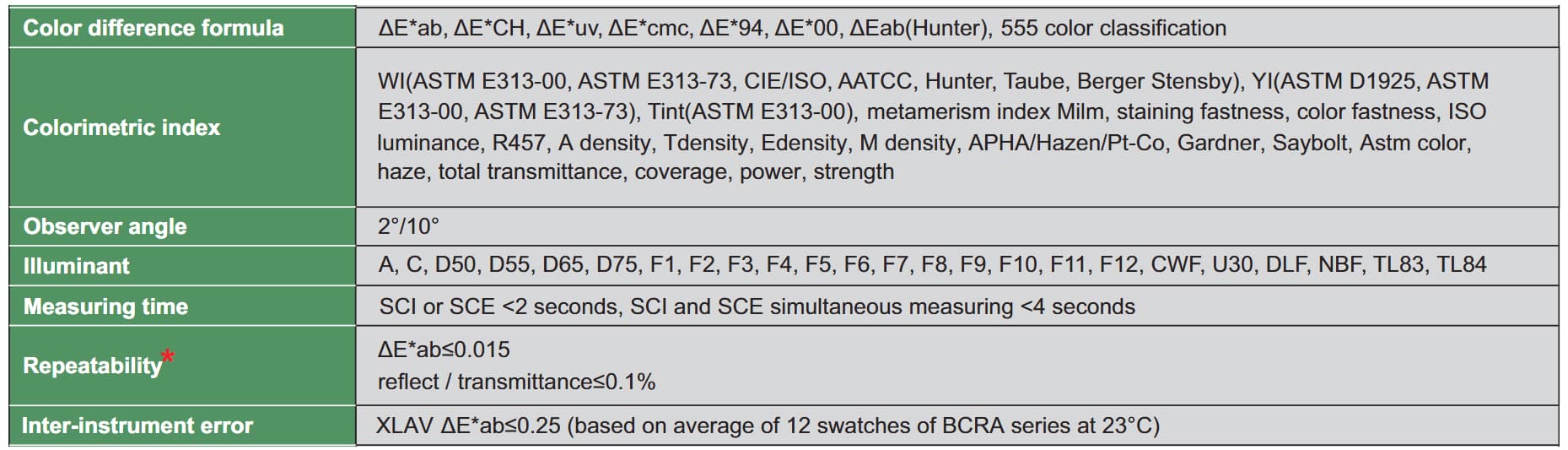

Technical Data:

Standard Delivery:

• 1x Spectrophotometer
• 1x Black cavity
• 1x White plate
• 1x Green plate
• 4x Measuring aperture
• 1x Cuvette
• 1x USB flash disk
• 2x Data cable
• 1x Damping handle
• 1x Support platform
• 1x Transmission fixture
• 1x Power adapter

Optional Accessories:

• Heated transmission clamp (5706-DS01-CLAMP1)
• Small sample fixture (5706-DS01-FIXTURE)
• Cuvette support (5706-DS01-SUPPORT)
• Vertical stand (5706-DS01-STAND)
• Protective plate (5706-DS01-PLATE)
• Fiber test holder (5706-DS01-HOLDER)
• Microtransmission clamp (5706-DS01-CLAMP2)
• Film test clamp (5706-DS01-CLAMP3)
