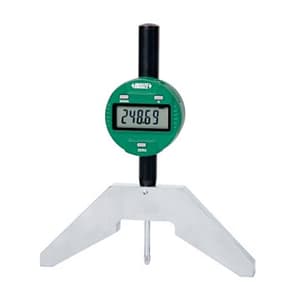

Insize 48 - 143 mm Digital Radius Gauge, 2188-143
Roll over image to zoom zoom_in
- Product Type: Radius Gauges
- Range (mm): 48 - 143 mm
- Range (radius): 1.89 - 5.63 inch
- Accuracy: ±0.03 mm
- Resolution: 0.01 mm / 0.0005 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹26275.06 (Incl. of all taxes)
₹22267+ ₹4008.06 GST (18%)
MRP ₹32746
SAVE 32%
3 Business Days
1 Pcs
90173029
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

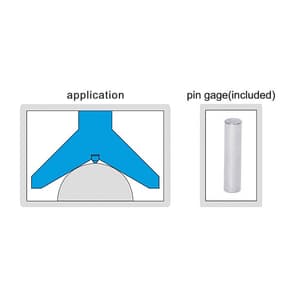

- Measure the radius of the external arc, the arc angle of the measured surface should be larger than 60°
- Display radius value, no need to calculate
- Button function: on/off, zero, data preset, inch/mm
- Keep preset data in memory after the restart
- CR2032 battery, automatic power off
- Data output
- Stainless steel base
- Supplied with pin gauge for zero setting
- Optional accessory: Data Output Cable (Code 7315-50M, 7302-40M)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.RA.00003 |
|---|---|
| Product Type | Radius Gauges |
| Model No | 2188-143 |
| Range (mm) | 48 - 143 mm |
| Range (radius) | 1.89 - 5.63 inch |

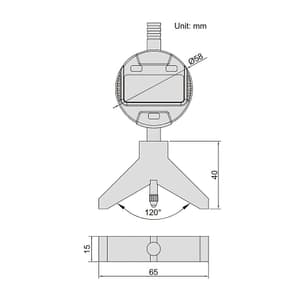

| A (mm) | 65 mm |
| B (mm) | 165 mm |
| Accuracy | ±0.03 mm |
| Resolution | 0.01 mm / 0.0005 inch |
