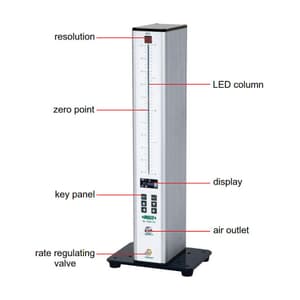

Insize 5µm Air Gage Display, 9404-121
Roll over image to zoom zoom_in
- Weight: 4.25 Kg
- Product Type: Air Gauge
- LED height: 254 mm
- Operation temperature: 0~45 C
- Power supply: 220V, 50/60Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹105037.7 (Incl. of all taxes)
₹89015+ ₹16022.7 GST (18%)
MRP ₹108159
SAVE 17.7%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Can store 10 measuring programs, and the program can be switched quickly
- Data storage function, support manual, and automatic storing, 3000 groups data can be stored
- Insert USB flash disk to output storage data
- Automatically detect internal or external dimension measurement
- With footswitch for data transmission
- Automatic grouping function for workpiece sorting.
Specification:
Indication range, resolution, and accuracy
| indication range | resolution | accuracy |
| +/-5um | 0.1um | 0.2um |
| +/-10um | 0.2um | 0.4um |
| +/-25um | 0.5um | 1um |
| +/-50um | 1um | 2um |

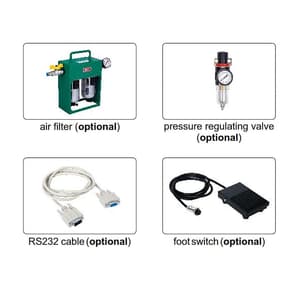

Optional Accessory:
| Air filter | 9401-FILTER |
| Pressure regulation valve | 9404-PRV |
| RS232 cable | 9404-CABLE |
| Footswitch | 9404-FS |
Standard Delivery:
| Main unit | 1 Pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.AI.00001 |
|---|---|
| Product Type | Air Gauge |
| Model No | 9404-121 |
| LED quantity | 101 Pcs |
| LED colour | red, orange, green |
| LED height | 254 mm |
| Unit | mm, um |
| Measuring mode | dynamic measurement, Max, Min, Max-Min, (Max+Min)/2, ((Max -Min)/2 |
| Air supply | dry and clean, 0.4~0.8MPa |

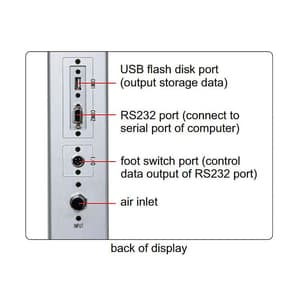

| Data interface | RS232/USB flash disk |
| Operation temperature | 0~45 C |
| Power supply | 220V, 50/60Hz |

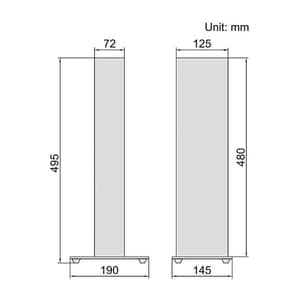

| Dimensions (L x W x H) | 190x145x495mm |
