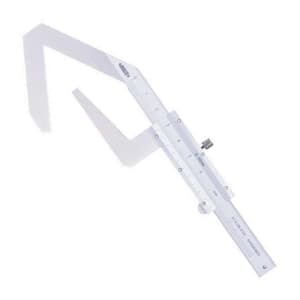

Insize 50 - 200 mm V Shape Vernier Caliper, 1229-35
Roll over the image to zoom in
Key Features
- Product Type: Vernier Caliper
- Range (mm): 50 - 200 mm
- Graduation: 0.02 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,376 (Incl. of all taxes)
₹28,285 + ₹5,091 GST (18%)
MRP was MRP ₹40,407
Save 30%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Total Range (Diameter): Dia 50-200 mm
- Measure the outside diameter of an odd number of flutes (Such as taps, reamers, end mills and gears)
- Satin chrome plated reading surface
- Optional accessory: 4mm pin gage (code 4110-4D00), 050mm calibration cylinder (code 6316-50)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

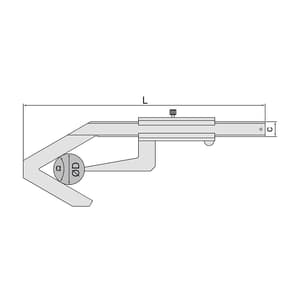

Specifications
| Range (mm) | 50 - 200 mm |
|---|---|
| Graduation | 0.02 mm |
| Accuracy | ±0.06 mm |
| C (mm) | 20 mm |
| Flutes | 3 |
| Angle a | 60° |
| Overall Length (mm) | 516 mm |
| Material | Stainless Steel |
