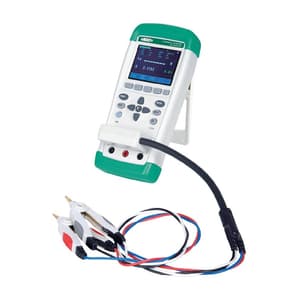

Insize 50Hz - 100kHz Handheld LCR Meter, 9652-RC02
Roll over image to zoom zoom_in
- Weight: 380 Grams
- Product Type: LCR Meter
- Test Frequency: 50Hz - 100kHz (Accuracy: 0.02%)
- Basic Accuracy: 0.2%
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹49105.7 (Incl. of all taxes)
₹41615+ ₹7490.7 GST (18%)
MRP ₹60311
SAVE 31%
5 Business Days
1 Set
930303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Test Frequency: 50Hz, 60Hz, 100Hz, 120Hz, 200Hz, 400Hz, 500Hz, 1kHz, 2kHz, 4kHz, 5kHz, 10kHz, 20kHz, 40kHz, 50kHz & 100kHz
- Automatic measure inductance (L), capacitance (C), resistance (R), impedance (Z), quality factor (Q), dissipation factor (D), phase (0) and DC resistance (DCR)
- Internal trigger
- Data hold
- Full range open and short compensation
- Equivalent circuit: series and parallel
- Compare main parameter with nominal value and display percent deviation
- Built in USB-C interface for data transmission and charging
- Language: English, Chinese
- LCD touch screen with adjustable backlight
- Automatic power off
Package Contents:
- 1x Handheld LCR Meter

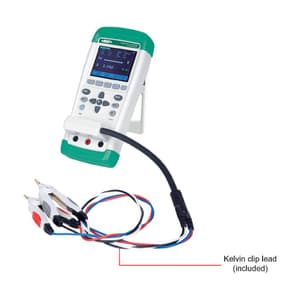

- 1x Kelvin Clip Lead

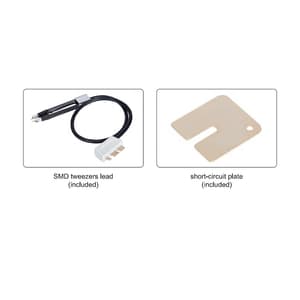

- 1x SMD Tweezers Lead
- 1x Short-circuit plate
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.LC.00015 |
|---|---|
| Product Type | LCR Meter |
| Model No | 9652-RC02 |
| Test Frequency | 50Hz - 100kHz (Accuracy: 0.02%) |
| Basic Accuracy | 0.2% |
| Measurement Parameters | C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-Or, Z-Od |
| Range | 8 levels, auto range or hold range |
| Signal Level | 0.1V, 0.3V, 0.7V, 1V; Accuracy: 10% |
| Test Speed | slow 2.5 times/sec, fast 10 times/sec |
| Interface | USB-C interface: support HID and VCOM communication, compatible with SCPI command |
| Operation Environment | 0°C~40°C, <80%RH |
| Working Time | 50% brightness: 9h: 100% brightness: 7h |
| Power Supply | Rechargeable Li-ion Battery |
| Power | <1.5W |
| Dimension (mm) | 195 x 90 x 41 mm |
